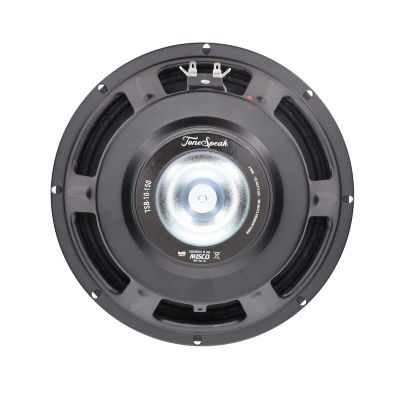

ToneSpeak TSB-10-150 | 10 Inch Bass Guitar Speaker
Brand Name
ToneSpeak
Model #
TSB-10-150
Part #
86067
Built to Order
$189.99
A compact design delivering BIG performance.
Unleash your bass guitar's potential with the 10-inch ToneSpeak TSB-10-150 Bass Guitar Speaker. Boasting a sturdy stamped-steel frame for lightweight durability, it's driven by a potent four oz. Neodymium magnet, ensuring exceptional high-end without the excess weight of standard magnet materials. With a remarkable 300-watt program power handling, this speaker effortlessly tackles powerful bass grooves and riffs. Elevate your sound and reliability with ToneSpeak — providing the ultimate platform for an exceptional bass-playing experience.
- 10-inch steel basket
- 2-inch inside/outside copper voice coil
- Fiberglass former
- 4 oz. neodymium magnet
- Paper cone with cloth M-roll surround
- 150 watts AES
- 300 watts program power
- 96.3 dB
A flat shipping fee of $15 is applied to US customers.
CHECK OUR DISTRIBUTORS PAGE for international customers to see what is available near you.
Download Product Specifications (PDF) »
| Brand Name | ToneSpeak |
|---|---|
| Model # | TSB-10-150 |
| Size, Nominal (inch & mm) | 10" (250 mm) |
| Shape of Speaker | Round |
| Speaker Type | Bass Guitar Speaker |
| Application | Musical Instruments |
| Environment | Outdoor / Indoor |
| RoHS Compliant | Yes |
| Nominal Impedance (Z) (Ω) | 8 |
| Rated Power IEC268-5 (W) | 150 Watts |
| Rated Impedance (Ω) | 8 |
| Continuous Power (W) | 150 |
| Program Power (W) | 300 |
| Frequency Range (Hz) | 55 - 6,000 |
| Sensitivity (dB SPL) ¹ | 96.3 |
| Resonant Frequency (Fs) (Hz) +/- 15% | 50 |
| DC Resistance (Re) (Ω) | 5.5 |
| Voice Coil Inductance (Le) (mH) | 0.49 |
| Mechanical Q Factor (Qms) | 9.43 |
| Electrical Q Factor (Qes) | 0.38 |
| Total Q Factor (Qts) | 0.36 |
| Mechanical Resistance (Rms) (kg/s) | 1.04 |
| Compliance Equivalent Volume (Vas) (L) | 55.84 |
| Suspension Compliance (Cms) (mm/N) | 0.33 |
| Surface Area of Diaphragm (Sd) (cm²) | 346.36 |
| Moving Mass (Mms) (gm) | 31.2 |
| Xmax (Klippel verified @82% Bl) (mm) | 3.6 |
| Xmax (Winding Height-Gap Height / 2) (mm) | 3.8 |
| Xmax (Add 1/3 Gap Height) (mm) | 6.0 |
| Xlim (mm) | 9.1 |
| Motor Force Factor (BL) (T•M) | 12 |
| Basket Type | Pressed steel |
| Terminal Size (mm) | 5.2 |
| Voice Coil Diameter (mm) | 50.8 |
| Voice Coil Wire Material | Copper |
| Voice Coil Former Material | Fiberglass |
| Voice Coil Winding | Inside / Outside |
| Magnet Material | Neodymium |
| Magnet Weight (g) | 113.4 |
| Cone Body Material | Paper |
| Cone Surround Material | Cloth |
| Dust Cap Material | Felt |
