Creating Professional Audio Solutions Since 1949 Single Enclosed 1.5" (40 mm) Wide Range Speaker
Brand Name
MISCO OEM
Part #
90316
Built to Order
$0.00
- Buy 1 - 0$0.00
THIS IS A “BUILT TO ORDER” PRODUCT.

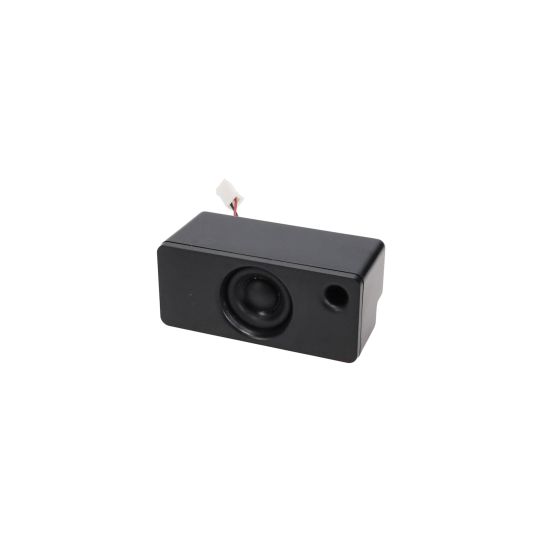

Enjoy the full spectrum of your audio, fit into the tightest of spaces! A compact and high performance wide range speaker inside of a black ABS vented enclosure for easy connection into arcade and casino gaming consoles.
- Enclosed wide range speaker
- 1.5" (40 mm) steel basket diameter
- 2 watts, 4 ohm, 82 dB SPL
- 4.1 x 2.0 x 1.8" ABS plastic enclosure
- 2x1 Molex MFJ terminal lead set
- -12 dB/octave 2nd order 200 Hz high-pass crossover recommended
Download Product Specifications (PDF) »
| Brand Name | MISCO OEM |
|---|---|
| Speaker Type | Full Range |
| Enclosed Woofer Style | Ported |
| Subwoofer Type | Un-powered [passive] |
| RoHS Compliant | Yes |
| Digital Signal Processing | No |
| Audio Signal Input | Analog |
| Enclosed Speaker Description | Enclosed wide range speaker |
| Frequency Range (Hz) | 170 - 20,000 |
| Sensitivity (dB SPL) ¹ | 82 |
| Key Features | 1.5" speaker inside ABS plastic vented enclosure |
| Enclosure Style | Ported |
| Size, Enclosure H,W,L (inches & mm) | 104 x 51 x 46 |
| Digital Input S/PDIF | No |
| Wire Harness Description | 2x1 MFJ-connector |
| Wire Harness Length | 75 mm |
| Net Weight (kg) | 0.1 |
