2.1 Channel, 52W, PCB Style Amplifier with DSP
Brand Name
MISCO Amplifiers
Model #
MA-2108
Part #
93115
Out of stock
$140.00

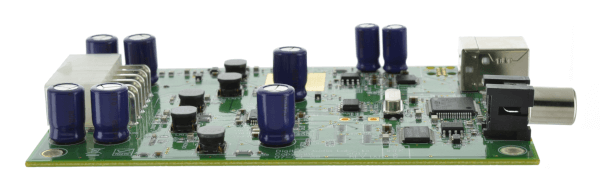

The 93115 is a 50-watt, small form-factor amplifier with DSP. This includes a 5-band EQ with crossovers and volume offsets. For easy access, one connector links to speaker outputs, analog line-in, and input power.
Key Features:
- 2.1 channel, class-D
- Analog, USB, and S/PDIF inputs
- Small form-factor amplifier with DSP
- 5-band EQ
*Power output varies with supply voltage and speaker impedance. See specs table for details.
Download Product Specifications (PDF) »
| Brand Name | MISCO Amplifiers |
|---|---|
| Model # | MA-2108 |
| Application | Arcade Gaming, Casino Gaming |
| RoHS Compliant | Yes |
| Amplifier Style | Printed Circuit Board |
| Amplifier Channels | 2.1 |
| Watts Per Channel (HF/LF) (W) | 13 x 2 / 25 |
| Digital Signal Processing | Yes |
| Audio Input | USB, S/PDIF, anlog |
| Amplifier Class Type | Class-D |
| Connectors / Termination - Speaker Output | 12-Pin (2x6) MFJ |
| Equalizers - EQs | 5-Band |
| PCB Size (HxWxL) (mm) | 70 x 108 |
| Recommended Voltage (VDC) | 24 |
