Professional Audio Solutions Since 1949 4 Inch (100 mm) Coaxial Ceiling Speaker Assembly

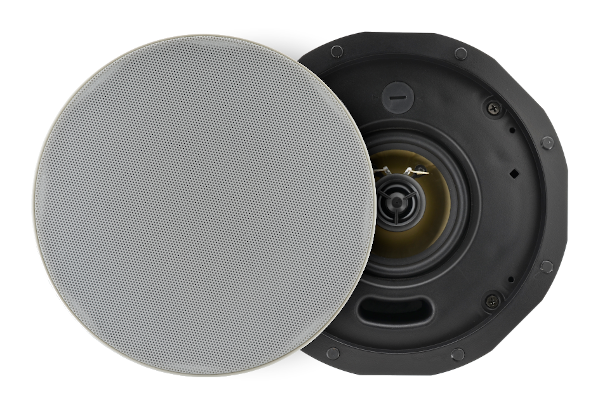

A wide range ceiling speaker assembly designed for high quality background music at home, in classrooms, stores, restaurants and other commercial settings. The driver is a 4", 8 ohm premium coaxial speaker built in America. It is protected by an 8.2" grille, magnetically attached with a clean and attractive white powder-coat finish.
The assembly rests within a rear enclosure made of sheet metal, and is protected by an ABS plastic baffle, UL90-V0 rated for flame retardance. The system is ported to maximize bass response in a small, compact enclosure. Connect to your audio system with a secure phoenix-style screw-type connector and make installation to the ceiling simple with this assembly's swivel-out mounting tabs as well.
- 4" (100 mm), 8 ohm coaxial ceiling speaker, two-way
- Titanium-plated polypropylene cone, rubber surround
- Ported speaker system
- 20 watts, 88 dB SPL
- 8.2" white magnetic speaker grille
- Phoenix-style connector
- Swivel-out mounting tabs
- Safety wire loop & cable included
Download Product Specifications (PDF) »
| Brand Name | Oaktron by MISCO |
|---|---|
| Speaker Type | Coaxial |
| Application | Commercial, Voice Communications |
| Nominal Impedance (Z) (Ω) | 8 |
| Rated Impedance (Ω) | 8 |
| Frequency Range (Hz) | 150 - 20,000 |
| Sensitivity (dB SPL) ¹ | 88 |
| Rated Power IEC268-5 (W) | 20 Watts |
| Program Power (W) | 40 |
| Environment | Indoor |
| Enclosure Style | Ported |
| Grille | 8.2" magnetic plate |
| Net Weight (kg) | 2.31 |
| RoHS Compliant | Yes |
| Technical Notes | ¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance |
