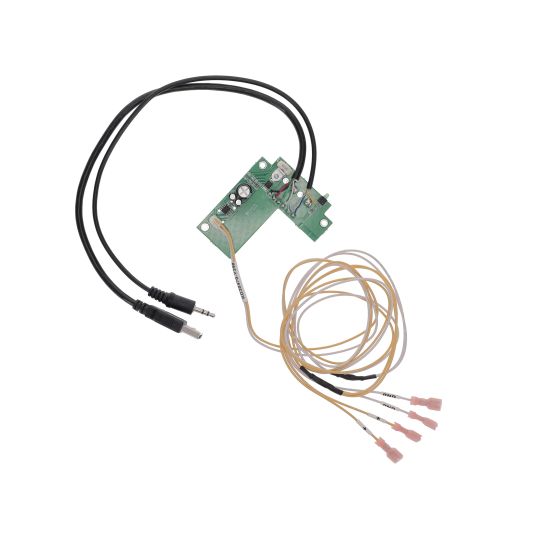

Mono Channel Amplifier with Lead Set & 12 Inch USB Cable

Brand Name
MISCO Amplifiers
Part #
In stock

When designing a small mono-sound active speaker system, simple amplifiers can be hard to find--especially ones tailor-made for easy installation in high numbers. In a sea of complex amps and devices, there is finally a solution ready and able to connect with your audio signal, your speakers, and a USB power source right out of the box, cutting both costs and manufacturing lead times. With the 38036 class AB amp, your audio solutions will always deliver clear and quality sound, and will do so quickly and effortlessly.

  • Class AB operation
  • 1.5W max output @ 4 ohms, 1W max output @ 8 ohms
  • Bridged driven output
  • Low distortion
  • Supply range 3-5.5V
  • Uses USB connection for power only
  • LED power-on light
  • Potentiometer volume control

Download Product Specifications (PDF) »

More Information
Brand Name MISCO Amplifiers
Application Voice Communications
RoHS Compliant Yes
Amplifier Style Printed Circuit Board
Amplifier Channels 1
Digital Signal Processing No
PSU Voltage Range 3 - 5.5
Audio Input Analog
Amplifier Class Type Class AB
4 Ohm Power (W) 1.5
8 Ohm Power (W) 1
Connectors / Termination - Line Input 3.5mm Stereo, 3 pin MTA
Connectors / Termination - Speaker Output 48" lead set w/ 0.187 x 0.020" quick connectors
PCB Size (HxWxL) (mm) 17x62x69
Net Weight (kg) 0.06
