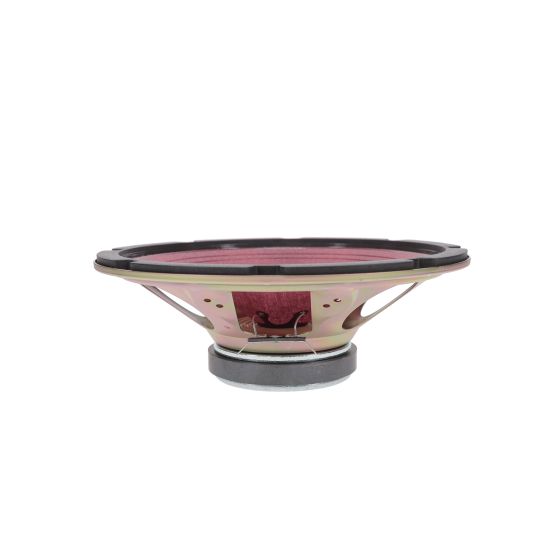

8 Inch (203 mm) Waterproof, Wide Range Speaker
Brand Name
MISCO OEM
Part #
JC8WP
Built to Order
$59.99
The most durable outdoor 8" cone speaker available, this speaker can be used for voice communications and music. Its high sensitivity can make small amplifiers sound larger. The acrylic-treated cloth cone, surround, and dust cap provide additional years of projected life (depending on environment). It features an eight-hole mount design for ease of front or rear flush mounting. It can also come with a 70-volt transformer attached andmounts to a standard 8" ceiling baffle.
- Acrylic-treated cone and edge compliance
- Voice / Communications Applications
- 30 watts program power
- Aluminum voice coil form
- High Energy (HE) Ferrite magnet
- Steel Basket construction
- Available with 70 Volt Transformer
This speaker front or rear mountable.
Download Product Specifications (PDF) »
| Brand Name | MISCO OEM |
|---|---|
| National Stock Number (NSN) | 5965012723439 |
| Speaker Type | Full Range |
| Shape of Speaker | Round |
| Size, Nominal (inch & mm) | 8" (203 mm) |
| Environment | Outdoor |
| Application | Commercial, Indoor, Outdoor , Transit, Voice Communications |
| RoHS Compliant | No |
| Rated Impedance (Ω) | 8 |
| Rated Power IEC268-5 (W) | 15 Watts |
| Program Power (W) | 15.0 |
| Sensitivity (dB SPL) ¹ | 94 |
| Frequency Range (Hz) | 50 - 8,000 |
| DC Resistance (Re) (Ω) | 6.8 |
| Resonant Frequency (Fs) (Hz) +/- 15% | 99 |
| Nominal Impedance (Z) (Ω) | 8 |
| Voice Coil Inductance (Le) (mH) | 0 |
| Mechanical Q Factor (Qms) | 4.4 |
| Electrical Q Factor (Qes) | 1.3 |
| Total Q Factor (Qts) | 1.01 |
| Basket Type | Stamped Steel with zinc plating |
| Terminal Size (mm) | 5.7 x 0.5 mm |
| Voice Coil Diameter (mm) | 25.4 |
| Voice Coil Wire Material | copper |
| Voice Coil Former Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight (g) | 284 |
| Cone Body Material | Red Acrylic Treated Cloth |
| Cone Surround Material | Red Acrylic Treated Cloth |
| Spider Material | Cotton |
| Dust Cap Material | Red Acrylic Treated Cloth |
| Net Weight (kg) | 0.90 |
| Technical Notes | ¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance |
