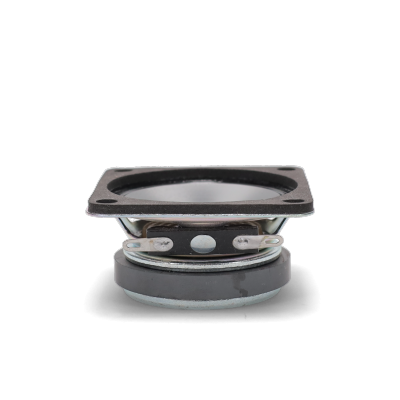

2.5 Inch (64 mm) 8 Ohm Voice Range Speaker
The MISCO water-resistant OEM speaker is a durable and dependable option for signal and communication systems that require consistent performance. This 2.5-inch speaker features a PEI cone and a neoprene gasket that is expertly sealed to prevent water from entering, allowing for reliable communication even in challenging weather conditions.
- Water-resistant design
- PEI cone and neoprene gasket ensure clear voice audio
- Optimal sound quality for critical communications with a 2.5-inch speaker size
- Sturdy construction for long-lasting durability
- Great for signal and communication systems needing consistent performance.
The MISCO water-resistant OEM speaker is the perfect choice for those who need to communicate clearly and consistently in challenging environments. Whether dealing with heavy rain or bright sunshine, this speaker will deliver the performance you need to stay connected. Don't settle for anything less than the best - choose the MISCO water-resistant OEM speaker today.
MISCO engineers use the world's most sophisticated loudspeaker measurement systems, including the Klippel Analyzer, to maximize and confirm the speaker's design and the Klippel QC module to ensure perfect unit-to-unit consistency and reliability.
Download Product Specifications (PDF) »
Brand Name | MISCO OEM |
---|---|
Speaker Type | Voice |
Shape of Speaker | Square |
Size, Nominal (inch & mm) | 2" (50 mm) |
Environment | Outdoor / Indoor |
Application | Military, Voice Communications |
RoHS Compliant | Yes |
Rated Impedance (Ω) | 8 |
Rated Power IEC268-5 (W) | 4 Watts |
Program Power (W) | 8 |
Sensitivity (dB SPL) ¹ | 92 |
Frequency Range (Hz) | 400 - 8,000 |
DC Resistance (Re) (Ω) | 6.1 |
Resonant Frequency (Fs) (Hz) +/- 15% | 400 |
Nominal Impedance (Z) (Ω) | 8 |
Mechanical Q Factor (Qms) | 11.3 |
Electrical Q Factor (Qes) | 2.5 |
Total Q Factor (Qts) | 2.10 |
Basket Type | Stamped steel |
Terminal Size (mm) | 4.8 x 0.5 |
Voice Coil Diameter (mm) | 15.2 |
Voice Coil Wire Material | Copper |
Voice Coil Former Material | Kapton |
Magnet Material | Ferrite |
Magnet Weight (g) | 66.6 |
Cone Body Material | PEI |
Dust Cap Material | Mylar |
Net Weight (kg) | 0.2 |
Technical Notes | ¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance |
