5 Inch (127 mm) Waterproof Wide Range with Transformer

Brand Name
MISCO OEM
Part #
JC5WP-8T70
In stock
$55.92
  • MSRP$83.99
  • Buy 1 - 0$55.92

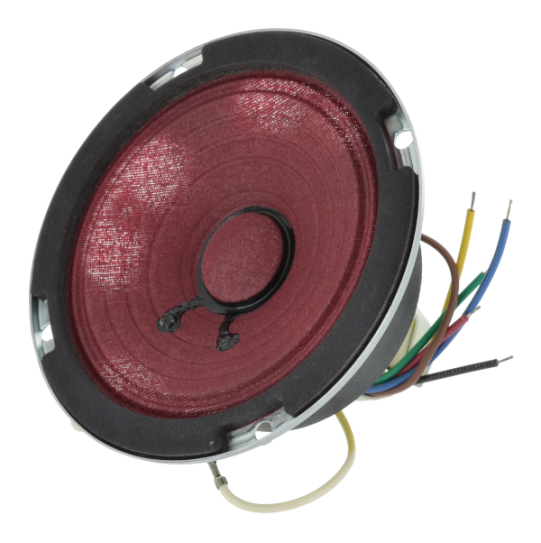

The JC5WP-8T70 is a rugged and reliable speaker designed to deliver exceptional audio performance in transit environments. Built to withstand the toughest conditions, this waterproof speaker features a 5-inch diameter, an acrylic-treated cloth cone, and a sturdy steel frame that ensures consistent paging and clear voice communications.

This speaker is designed to cater to different audio system requirements, featuring an 8-watt, 70-volt transformer with primary taps at 8, 4, 2, 1, and 0.5 watts with color-coded lead wires. Whether at a train station, bus stop, or subway platform, the JC5WP-8T70 delivers consistent and exceptional sound quality that you can depend on.

  • Waterproof and durable design
  • 8-watt, 70-volt transformer with versatile tapping options
  • Acrylic-treated cloth cone and sturdy steel frame for consistent paging and voice communications
  • Ideal for transit environments such as trains, buses, and subway platforms

MISCO engineers use the world's most sophisticated loudspeaker measurement systems, including the Klippel Analyzer, to maximize and confirm the speaker's design and the Klippel QC module to ensure perfect unit-to-unit consistency and reliability.

Download Product Specifications (PDF) »

More Information
Brand Name MISCO OEM
Speaker Type Full Range
Shape of Speaker Round
Size, Nominal (inch & mm) 5" (127 mm)
Environment Outdoor
Application Indoor, Outdoor , Transit
Rated Impedance (Ω) 8
Rated Power IEC268-5 (W) 20 Watts
Program Power (W) 40
Sensitivity (dB SPL) ¹ 95
Frequency Range (Hz) 120 - 8,000
DC Resistance (Re) (Ω) 6.8
Resonant Frequency (Fs) (Hz) +/- 15% 200
Nominal Impedance (Z) (Ω) 8
Mechanical Q Factor (Qms) 4.2
Electrical Q Factor (Qes) 1.2
Total Q Factor (Qts) 0.91
Basket Type Stamped steel
Voice Coil Diameter (mm) 25.4
Voice Coil Wire Material Copper
Voice Coil Former Material Aluminum
Magnet Material Ferrite
Magnet Weight (g) 284
Cone Body Material Red acrylic treated cloth
Cone Surround Material Red acrylic treated cloth
Dust Cap Material Red acrylic treated cloth
Technical Notes

¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance
