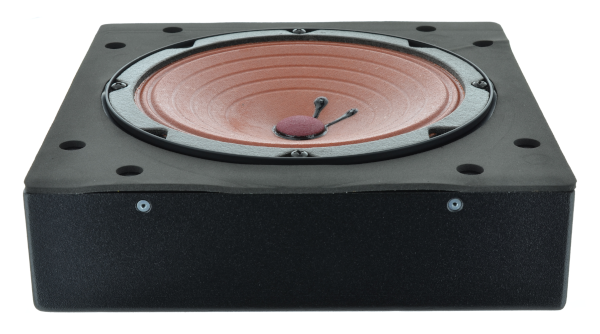

Enclosed 6.5" (165 mm), Shallow Ceiling Speaker for Transit
Brand Name
MISCO OEM
Part #
90133
In stock
$247.00
- MSRP$399.99
- Buy 1 - 4$247.00
- Buy 5 - 9 $228.00
- Buy 10 - 29 $209.90
- Buy 30+Request a Quote
A shallow 6.5” round paging speaker made for Amtrak railcar ceiling systems, with an insulated audio input bushing containing two 1/4” male lugs, connected to a 70 volt transformer tapped at one watt. This product assembly is only 2” deep, making it extremely compact and ideal for mounting in Amtrack trains and railcar ceilings. A highly durable cloth cone treatment and rubber gasketing makes this model both waterproof and resistant to harsh cleaning solutions.
- Enclosed wide range paging speaker
- 6.5" (165 mm) steel basket diameter
- 15 watt, 8 ohm, 93 dB SPL
- 0.75" aluminum voice coilÂ
- Acrylic treated cone, ferrite magnet
Download Product Specifications (PDF) »
Brand Name | MISCO OEM |
---|---|
Speaker Type | Voice |
Shape of Speaker | Round |
Size, Nominal (inch & mm) | 6" (152 mm) |
Environment | Indoor |
Application | Indoor, Outdoor , Transit |
RoHS Compliant | Yes |
Rated Impedance (Ω) | 8 |
Rated Power IEC268-5 (W) | 15 Watts |
Program Power (W) | 30 |
Sensitivity (dB SPL) Âą | 93 |
Frequency Range (Hz) | 50 - 18,000 |
Resonant Frequency (Fs) (Hz) | 100 |
Nominal Impedance (Z) (Ω) | 8 |
Total Q Factor (Qts) | 0.79 |
Basket Type | Stamped steel |
Voice Coil Diameter (mm) | 19.38 |
Voice Coil Wire Material | Copper |
Voice Coil Former Material | Aluminum |
Magnet Material | Ferrite |
Magnet Weight (g) | 85.05 |
Cone Body Material | Acrylic treated cloth |
Cone Surround Material | Treated cloth |
Spider Material | Cotton |
Dust Cap Material | Cloth |
Technical Notes | ¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance |
