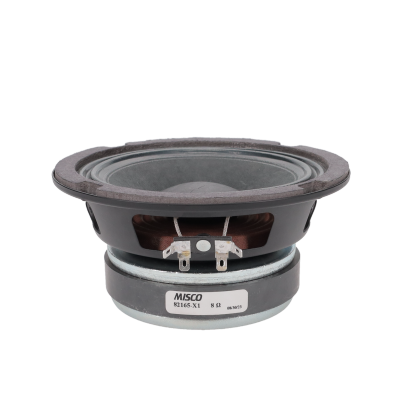

6.5 Inch Multi-Purpose Pro Midbass Woofer
The 82165 is a 6.5-inch pro midbass woofer tailored for professional applications. With a powerful 100W AES rating and an 8-ohm impedance, this driver promises exceptional performance. Its core strength lies in its 1.5-inch copper voice coil, and 28oz vented ferrite motor, ensuring superior sound quality and durability. The water-resistant treated paper cone body, coupled with a resilient cloth surround, offers a unique blend of rigidity and flexibility, enhancing sound accuracy. The paper dust cap further complements the woofer's design, contributing to its aesthetic appeal and acoustic efficiency. Optimized for a frequency range of 100Hz-5kHz, the 82165-X1 delivers a balanced and vivid audio experience, making it an ideal choice for high-fidelity audio systems.
Key Specifications:
- 6.5 inch (165.1 mm) diameter
- 8 ohm, 100 watts
- 92.9 dB SPL
- 1.5 inch copper voice coil with Kapton former
- Ferrite magnet pressed steel basket
- Water-resistant paper cone, cloth surround
Download Product Specifications (PDF) »
| Speaker Type | Midbass |
|---|---|
| Shape of Speaker | Round |
| Size, Nominal (inch & mm) | 6" (152 mm) |
| Environment | Outdoor / Indoor |
| Application | High-End Audio and Home Theater, Home Audio |
| RoHS Compliant | No |
| Rated Impedance (Ω) | 8 |
| Rated Power IEC268-5 (W) | 100 Watts |
| Frequency Range (Hz) | 100 - 5000 |
| DC Resistance (Re) (Ω) | 7.05 |
| Resonant Frequency (Fs) (Hz) +/- 15% | 106 |
| Nominal Impedance (Z) (Ω) | 8 |
| Voice Coil Inductance (Le) (mH) | 0.27 |
| Mechanical Q Factor (Qms) | 1.85 |
| Electrical Q Factor (Qes) | 0.55 |
| Total Q Factor (Qts) | 0.42 |
| Basket Type | Pressed Steel |
| Voice Coil Diameter (mm) | 38.1 |
| Voice Coil Wire Material | Copper |
| Voice Coil Former Material | Kapton |
| Magnet Material | Ferrite |
| Magnet Weight (g) | 793.787 |
| Cone Body Material | Paper |
| Cone Surround Material | Cloth |
| Dust Cap Material | Paper |
