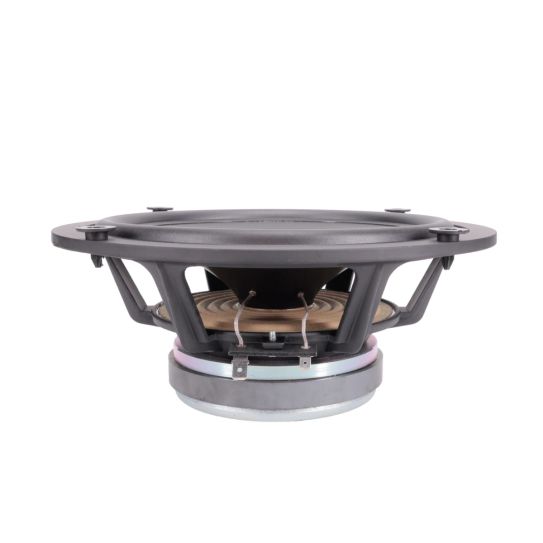

8 Inch (203 mm) 7 Ohm Premium Woofer
This premium 8" woofer is a gem for two-way systems. At the core of it's design is a unique voice coil which has two 12 ohm voice coils made of CCA wire wound in parallel on the same bobbin for a 7 ohm driver impedance. This design provides a very motor controlled design with excellent transient and reference response. The cone is made of a very rigid carbon filled polypropylene cone which displays a very uniform break-up mode. The spider is made of a flat formed conex spider for linear travel in both directions. The parts are supported by Euro style die cast aluminum basket.
- Woofer
- 8" (203 mm) basket diameter
- 50 watts, 7 ohms, 92 dB SPL
- 1.5" aluminum voice coil, aluminum former
- Ferrite magnet, cast aluminum basket
- Polypropylene cone, natural rubber surround
MISCO engineers test and analyze the performance of these speakers using the world's most sophisticated loudspeaker measurement systems including the Klippel Analyzer and the Klippel QC, which are used to validate final design. Oaktron by MISCO is the premium line of high performance, ready-to-ship transducers for a wide variety of applications including high fidelity, musical instrument, automotive and many more. From elegantly simple to highly specialized designs for unique and demanding applications, there is an Oaktron loudspeaker perfectly suited for your needs.
Pair this woofer with one of our MISCO Amplifiers.
Download Product Specifications (PDF) »
| Brand Name | Oaktron by MISCO |
|---|---|
| Model # | 203-WF08-01 |
| Size, Nominal (inch & mm) | 8" (203 mm) |
| Shape of Speaker | Round |
| Speaker Type | Woofer |
| Application | High-End Audio and Home Theater, Home Audio |
| Environment | Indoor |
| RoHS Compliant | Yes |
| Nominal Impedance (Z) (Ω) | 7 |
| Rated Power IEC268-5 (W) | 50 Watts |
| Rated Impedance (Ω) | 7 |
| Continuous Power (W) | 50 |
| Program Power (W) | 100 |
| Frequency Range (Hz) | 25 - 6,000 |
| Sensitivity (dB SPL) ¹ | 92 |
| Resonant Frequency (Fs) (Hz) +/- 15% | 34 |
| DC Resistance (Re) (Ω) | 6.1 |
| Voice Coil Inductance (Le) (mH) | 0.70 |
| Mechanical Q Factor (Qms) | 3.22 |
| Electrical Q Factor (Qes) | 0.39 |
| Total Q Factor (Qts) | 0.35 |
| Mechanical Resistance (Rms) (kg/s) | 1.57 |
| Compliance Equivalent Volume (Vas) (L) | 75.37 |
| Suspension Compliance (Cms) (mm/N) | 0.92 |
| Surface Area of Diaphragm (Sd) (cm²) | 240.5 |
| Moving Mass (Mms) (gm) | 23.6 |
| Magnetic Gap Height (mm) | 7.9 |
| Coil Winding Height (mm) | 14.8 |
| Maximum Linear Excursion (Xmax) (mm) | 3.4 |
| Motor Force Factor (BL) (T•M) | 8.8 |
| Efficiency (η₀) (%) | 0.73 |
| Efficiency Bandwidth Product (EBP) (Fs/Qes) | 86.6 |
| Basket Type | Cast aluminum, black powder coat finished |
| Terminal Size (mm) | 6.3 x 0.8 mm / 4.7 x 0.5 mm |
| Voice Coil Diameter (mm) | 38.7 |
| Voice Coil Wire Material | Copper clad aluminum |
| Voice Coil Former Material | Aluminum |
| Voice Coil Winding | Two concentric voice coils wired in parallel, four layers. |
| Magnet Material | Ferrite |
| Magnet Weight (g) | 566 |
| Cone Body Material | Polypropylene, carbon filled |
| Cone Surround Material | Natural rubber |
| Dust Cap Material | Black, pretreated cloth |
| Spider Material | Conex |
| Net Weight (kg) | 2.35 |
| Technical Notes | 1 Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance |
