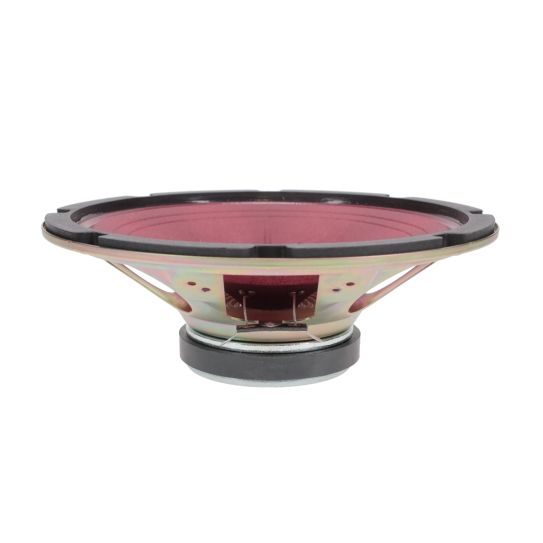

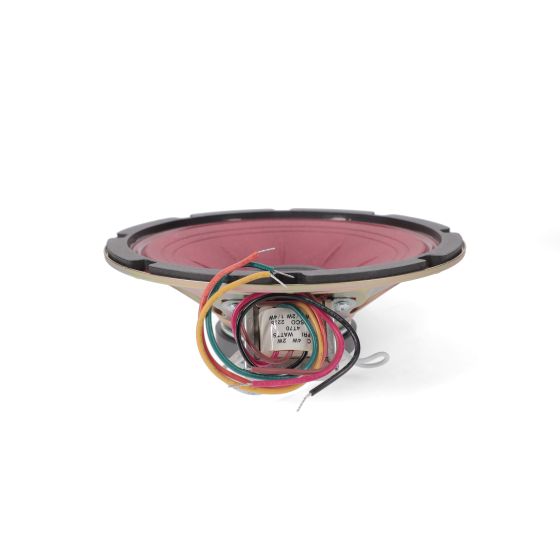

8 Inch (203 mm), 8 Ohm Waterproof Music and Voice Speaker
Brand Name
MISCO OEM
Part #
JC80WP
In stock
$84.99
The JC80WP 8” waterproof loudspeaker performs best in installations needing both excellent sound quality and durability under tough environmental conditions. This model features a treated cloth cone and a piezo tweeter phase-coupled to the low frequency driver to cut phase distortion and produce an extended frequency range.
- Extended range coaxial speaker with piezo tweeter
- 8 in. (203 mm) diameter
- 15 watts, 8 ohm, 93 dB SPL
- -67°F (-55°C) to +185°F (+85°C)
- Acrylic-treated cloth cone
- Ferrite magnet
Download Product Specifications (PDF) »
| Brand Name | MISCO OEM |
|---|---|
| Speaker Type | Coaxial |
| Shape of Speaker | Round |
| Size, Nominal (inch & mm) | 8" (203 mm) |
| Environment | Outdoor |
| Application | Commercial, Outdoor , Voice Communications |
| RoHS Compliant | No |
| Rated Impedance (Ω) | 8 |
| Rated Power IEC268-5 (W) | 15 Watts |
| Program Power (W) | 30 |
| Sensitivity (dB SPL) ¹ | 93 |
| Frequency Range (Hz) | 50 - 18,000 |
| DC Resistance (Re) (Ω) | 8 |
| Resonant Frequency (Fs) (Hz) +/- 15% | 100 |
| Nominal Impedance (Z) (Ω) | 8 |
| Total Q Factor (Qts) | 0.79 |
| Basket Type | Stamped Steel |
| Terminal Size (mm) | 5.2 mm x 0.5 mm |
| Voice Coil Diameter (mm) | 25.78 |
| Voice Coil Wire Material | High Temperature Copper |
| Voice Coil Former Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight (g) | 283.5 |
| Cone Body Material | Acrylic Treated Cloth |
| Cone Surround Material | Acrylic Treated Cloth |
| Spider Material | Cotton |
| Dust Cap Material | Paper Composite |
| Net Weight (kg) | 2.02 |
| Technical Notes | ¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance |
