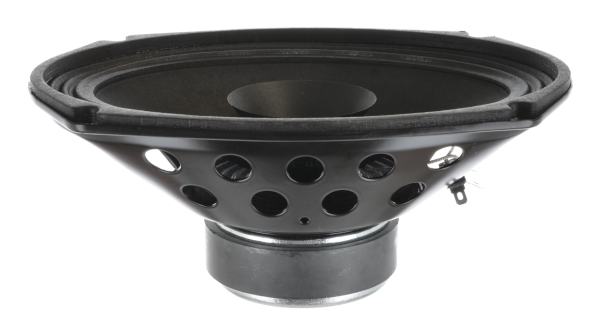

6 Inch x 9 Inch Double Magnet, Full Range Speaker with Whizzer
The 93093 full range speaker combines a classic design with modern ingenuity ideal for car audio, line arrays, voice communications, and more. Increase your sound system's high frequency dispersion with this driver's whizzer cone attached to the dust cap.
- Full range speaker
- 6" x 9" (150 mm x 229 mm) diameter basket
- 35 watts, 8 ohms, 93 dB SPL
- 1" copper voice coil, aluminum former
- Stamped steel basket, ferrite magnet
- Engineered paper cone, treated cloth surround
MISCO engineers test and analyze the performance of these speakers using the world's most sophisticated loudspeaker measurement systems including the Klippel Analyzer and the Klippel QC, which are used to validate final design.
Oaktron by MISCO is the premium line of high performance, ready-to-ship transducers for a wide variety of applications including high fidelity, musical instrument, automotive and many more. From elegantly simple to highly specialized designs for unique and demanding applications, there is an Oaktron loudspeaker perfectly suited for your needs.
Download Product Specifications (PDF) »
| Brand Name | Oaktron by MISCO |
|---|---|
| Model # | 150X229-FR08-01 |
| Size, Nominal (inch & mm) | 6" Oval (152 mm) |
| Shape of Speaker | Oval |
| Speaker Type | Wide Range |
| Application | Arcade Gaming, Auto / Motorcycle, Home Audio, Indoor, Musical Instruments, Pro Sound, Transit, Voice Communications |
| Environment | Indoor |
| RoHS Compliant | Yes |
| Nominal Impedance (Z) (Ω) | 8 |
| Rated Power IEC268-5 (W) | 35 Watts |
| Rated Impedance (Ω) | 8 |
| Continuous Power (W) | 35 |
| Program Power (W) | 70 |
| Frequency Range (Hz) | 40 - 15,000 |
| Sensitivity (dB SPL) ¹ | 93 |
| Resonant Frequency (Fs) (Hz) +/- 15% | 61 |
| DC Resistance (Re) (Ω) | 7.7 |
| Voice Coil Inductance (Le) (mH) | 0.42 |
| Mechanical Q Factor (Qms) | 2.80 |
| Electrical Q Factor (Qes) | 0.75 |
| Total Q Factor (Qts) | 0.59 |
| Mechanical Resistance (Rms) (kg/s) | 1.49 |
| Compliance Equivalent Volume (Vas) (L) | 35.17 |
| Suspension Compliance (Cms) (mm/N) | 0.62 |
| Surface Area of Diaphragm (Sd) (cm²) | 199.9 |
| Moving Mass (Mms) (gm) | 10.9 |
| Magnetic Gap Height (mm) | 4.5 |
| Coil Winding Height (mm) | 7.1 |
| Maximum Linear Excursion (Xmax) (mm) | 1.3 |
| Motor Force Factor (BL) (T•M) | 6.5 |
| Efficiency (η₀) (%) | 1.03 |
| Efficiency Bandwidth Product (EBP) (Fs/Qes) | 81.5 |
| Basket Type | Stamped steel with black powder coat |
| Terminal Size (mm) | 5.2 x 0.5 mm |
| Voice Coil Diameter (mm) | 25.8 |
| Voice Coil Wire Material | Copper |
| Voice Coil Former Material | Aluminum |
| Voice Coil Winding | Single coil, 2 layer |
| Magnet Material | Ferrite |
| Magnet Weight (g) | 560 |
| Cone Body Material | Engineered paper fiber |
| Cone Surround Material | Corrugated treated cloth |
| Dust Cap Material | Paper high frequency dual cone |
| Spider Material | Cotton |
| Net Weight (kg) | 1.3 |
| Technical Notes | ¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance |
