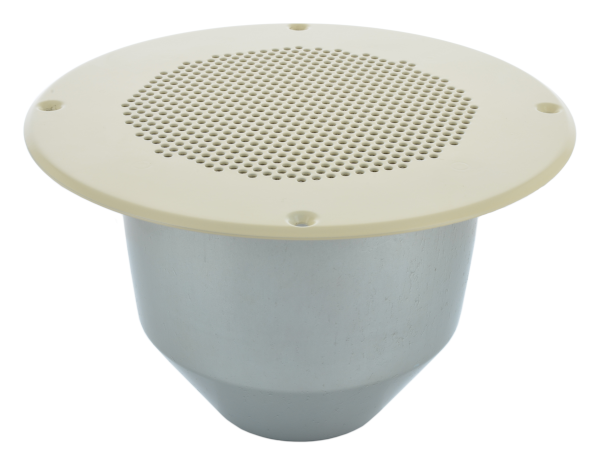

6" (152 mm) Vandal-Resistant, Flame Retardant Ceiling Speaker
- MSRP$121.99
- Buy 1 - 3$84.97
- Buy 4 - 39 $76.47
- Buy 40 - 119 $68.47
- Buy 120+Request a Quote
A high-sensitivity wide range ceiling speaker for trains and high traffic transit areas. The driver is a 6", 8 ohm, flame retardant speaker. It is mounted to an 8.5" diameter, protective grille made from durable 20-gauge steel. The grille is finished with an attractive light-ivory, powder coat finish. Between the driver and the grille is a stainless steel, wire mesh, vandal-resistant security screen to further protect the speaker cone against foreign objects.
The assembly is enclosed with a slim-line, heavy-duty 22-gauge back-box, which is finished with a corrosion resistant zinc plating. A secure electrical connection is made to the speaker using 6-32 steel electroplated screws with Phillips heads. The screws are insulated from the back-box with FR-4 rated vulcanized fiber board.
- 6" (152 mm), 8 ohm, wide range speaker for voice and music
- High sensitivity, 94 dB SPL at 1 watt, 1 meter
- 15 watts nominal power handling
- Flame retardant speaker
- Rugged 22-gauge steel rear enclosure, zinc plated
- Connections made via 6-32 screw terminals, FR-4 rated fiber board
- 20-gauge steel grille, RAL 1015 light ivory powder coat finish
Download Product Specifications (PDF) »
Brand Name | MISCO OEM |
---|---|
Speaker Type | Wide Range |
Shape of Speaker | Other |
Size, Nominal (inch & mm) | 6" (152 mm) |
Environment | Indoor |
Application | Transit |
RoHS Compliant | Yes |
Rated Impedance (Ω) | 8 |
Rated Power IEC268-5 (W) | 15 Watts |
Program Power (W) | 30 |
Sensitivity (dB SPL) ¹ | 94 |
Frequency Range (Hz) | 200 - 15,000 |
Nominal Impedance (Z) (Ω) | 8 |
Basket Type | Stamped steel, cushioned |
Terminal Size (mm) | Steel electroplated 6-32 screw terminals, Phillips head |
Voice Coil Diameter (mm) | 19.1 |
Voice Coil Wire Material | Copper |
Voice Coil Former Material | Aluminum |
Magnet Material | Ferrite |
Magnet Weight (g) | 136.08 |
Cone Body Material | Treated paper |
Cone Surround Material | Treated paper |
Dust Cap Material | Treated paper |
Net Weight (kg) | 1.02 |
Technical Notes | ¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance |
