Professional Audio Solutions Since 1949 6" (152 mm) Speaker / Transformer / Grille
Brand Name
Misco OEM
Part #
AX-1364-M
In stock
$105.10
- MSRP$199.99
- Buy 1 - 6$105.10
- Buy 7+Request a Quote

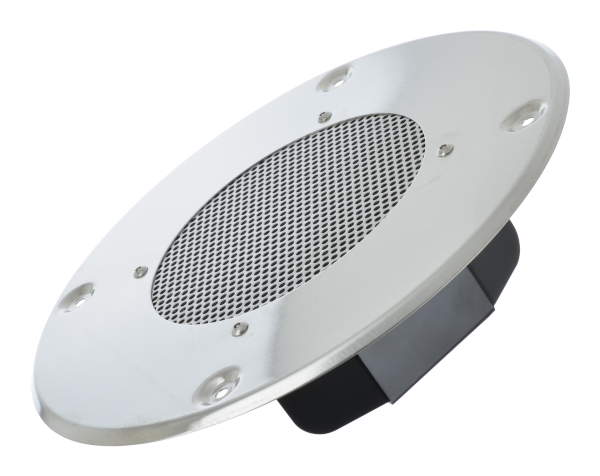

The AX-1364-M is a 6" integrated transit speaker, 70 volt transformer, and bushed aluminum grille specially designed for railcar applications. This model’s custom mounted terminal strip allows multiple connection methods to best fit a system’s electrical configuration.
- Voice range speaker
- 6" (152 mm) basket diameter
- 12 watts, 8 ohm
- 70 watt transformer, taps 1, 2, and 4 watts
- Ferrite magnet, acrylic treated paper cone
- Bushed aluminum grille
Download Product Specifications (PDF) »
| Brand Name | Misco OEM |
|---|---|
| Speaker Type | Voice |
| Shape of Speaker | Round |
| Size, Nominal (inch & mm) | 6" (152 mm) |
| Environment | Indoor |
| Application | Indoor, Transit, Voice Communications |
| RoHS Compliant | No |
| Rated Impedance (Ω) | 8 |
| Rated Power IEC268-5 (W) | 12 Watts |
| Program Power (W) | 12 |
| Frequency Range (Hz) | 80 - 8,500 |
| DC Resistance (Re) (Ω) | 8 |
| Resonant Frequency (Fs) (Hz) +/- 15% | 120 |
| Nominal Impedance (Z) (Ω) | 8 |
| Total Q Factor (Qts) | 1.50 |
| Basket Type | Stamped steel |
| Magnet Material | Ferrite |
| Magnet Weight (g) | 136.08 |
| Cone Body Material | Treated paper |
| Cone Surround Material | Treated cloth |
| Technical Notes | ¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance |
