Professional Audio Solutions Since 1949 6.5 Inch (165 mm) 8 Ohm, Premium Woofer

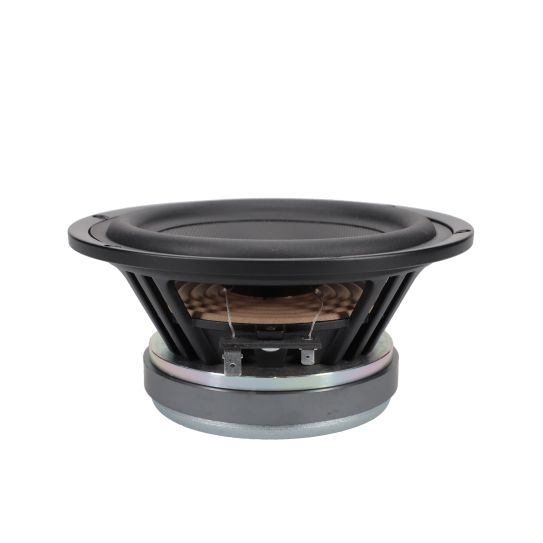

This Oaktron woofer was engineered for high quality two-way systems. Its robust die cast aluminum basket is supporting a carbon filled polypropylene cone with a molded NBR half-roll surround. The voice coil uses light weight copper clad aluminum wire wound on a polyimide form.
- Woofer
- 6.5" (165 mm) basket diameter
- 50 watts, 8 ohms, 86 dB SPL
- 1.5" aluminum voice coil, aluminum former
- Ferrite magnet, cast aluminum basket
- Polypropylene cone, molded rubber surround
MISCO engineers test and analyze the performance of these speakers using the world's most sophisticated loudspeaker measurement systems including the Klippel Analyzer and the Klippel QC, which are used to validate final design.
Oaktron by MISCO is the premium line of high performance, ready-to-ship transducers for a wide variety of applications including high fidelity, musical instrument, automotive and many more. From elegantly simple to highly specialized designs for unique and demanding applications, there is an Oaktron loudspeaker perfectly suited for your needs.
Pair this woofer with one of our MISCO Amplifiers.
Download Product Specifications (PDF) »
| Brand Name | Oaktron by MISCO |
|---|---|
| Model # | 165-WF08-01 |
| Size, Nominal (inch & mm) | 6" (152 mm) |
| Shape of Speaker | Round |
| Speaker Type | Woofer |
| Application | High-End Audio and Home Theater |
| Environment | Indoor |
| RoHS Compliant | No |
| Nominal Impedance (Z) (Ω) | 8 |
| Rated Power IEC268-5 (W) | 50 Watts |
| Rated Impedance (Ω) | 8 |
| Continuous Power (W) | 50 |
| Program Power (W) | 100 |
| Frequency Range (Hz) | 70 - 7,500 |
| Sensitivity (dB SPL) ¹ | 86 |
| Resonant Frequency (Fs) (Hz) +/- 15% | 41 |
| DC Resistance (Re) (Ω) | 6.6 |
| Voice Coil Inductance (Le) (mH) | 0.59 |
| Mechanical Q Factor (Qms) | 3.21 |
| Electrical Q Factor (Qes) | 0.64 |
| Total Q Factor (Qts) | 0.54 |
| Mechanical Resistance (Rms) (kg/s) | 1.56 |
| Compliance Equivalent Volume (Vas) (L) | 18.56 |
| Suspension Compliance (Cms) (mm/N) | 0.77 |
| Surface Area of Diaphragm (Sd) (cm²) | 130.7 |
| Moving Mass (Mms) (gm) | 19.3 |
| Magnetic Gap Height (mm) | 6.4 |
| Coil Winding Height (mm) | 15.2 |
| Maximum Linear Excursion (Xmax) (mm) | 4.4 |
| Motor Force Factor (BL) (T•M) | 7.2 |
| Efficiency (η₀) (%) | 0.20 |
| Efficiency Bandwidth Product (EBP) (Fs/Qes) | 64.3 |
| Basket Type | Die cast aluminum black powder coat |
| Terminal Size (mm) | 6.3 x 0.8 mm / 4.7 x 0.5 mm |
| Voice Coil Diameter (mm) | 38.7 |
| Voice Coil Wire Material | Aluminum |
| Voice Coil Former Material | Aluminum |
| Voice Coil Winding | Single coil, two layers |
| Magnet Material | Ferrite |
| Magnet Weight (g) | 568 |
| Cone Body Material | Polypropylene |
| Cone Surround Material | Molded rubber |
| Dust Cap Material | Insert cloth dust cap |
| Spider Material | Flat formed cloth |
| Net Weight (kg) | 2.07 |
| Technical Notes | ¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance |
