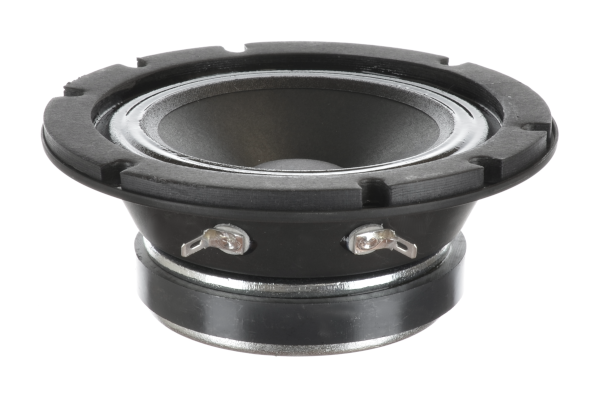

5 Inch (127 mm) 8 Ohm, Midrange Speaker
The Oaktron 93079 midrange driver contains a powerful ferrite magnet, a paper cone, and a vinyl treated cloth surround to give you high inteligibility sound; all in a self-enclosed basket for easy system integration into your next audio project.
- Midrange speaker
- 5” (127 mm) basket diameter
- 15 watts, 8 ohm, 100 dB SPL
- 1" copper voice coil, aluminum former
- Ferrite magnet, stamped steel basket
- Paper cone, cloth surround
Oaktron by MISCO is a premium line of high performance, ready-to-ship transducers and drivers for a wide variety of applications including high fidelity, arcade, and casino games, automotive, aerospace and many more. From elegantly simple to highly specialized designs for unique and demanding applications, there is an Oaktron loudspeaker perfectly suited for your needs.
MISCO engineers use the world's most sophisticated loudspeaker measurement systems including the Klippel Analyzer to maximize and validate the speaker's design, as well as the Klippel QC module to ensure perfect unit to unit consistency and reliability.
Download Product Specifications (PDF) »
| Brand Name | Oaktron by MISCO |
|---|---|
| Model # | JC5RTF-B |
| Size, Nominal (inch & mm) | 5" (127 mm) |
| Shape of Speaker | Round |
| Speaker Type | Midrange |
| Application | Pro Sound |
| Environment | Indoor |
| RoHS Compliant | No |
| Nominal Impedance (Z) (Ω) | 8 |
| Rated Power IEC268-5 (W) | 15 Watts |
| Rated Impedance (Ω) | 8 |
| Continuous Power (W) | 15 |
| Program Power (W) | 30 |
| Frequency Range (Hz) | 400 - 8,000 |
| Sensitivity (dB SPL) ¹ | 100 |
| Resonant Frequency (Fs) (Hz) +/- 15% | 478 |
| DC Resistance (Re) (Ω) | 6.8 |
| Voice Coil Inductance (Le) (mH) | 0.001 |
| Mechanical Q Factor (Qms) | 1.89 |
| Electrical Q Factor (Qes) | 7.78 |
| Total Q Factor (Qts) | 1.78 |
| Mechanical Resistance (Rms) (kg/s) | 3.41 |
| Compliance Equivalent Volume (Vas) (L) | 0.14 |
| Suspension Compliance (Cms) (mm/N) | 1.51 |
| Surface Area of Diaphragm (Sd) (cm²) | 58.1 |
| Moving Mass (Mms) (gm) | 3.9 |
| Magnetic Gap Height (mm) | 4.5 |
| Coil Winding Height (mm) | 6.4 |
| Maximum Linear Excursion (Xmax) (mm) | 0.9 |
| Motor Force Factor (BL) (T•M) | 5.9 |
| Efficiency (η₀) (%) | 0.14 |
| Efficiency Bandwidth Product (EBP) (Fs/Qes) | 61.5 |
| Basket Type | Stamped steel |
| Terminal Size (mm) | Solder lugs |
| Voice Coil Diameter (mm) | 25.81 |
| Voice Coil Wire Material | Copper |
| Voice Coil Former Material | Aluminum |
| Voice Coil Winding | 2 layer, round wire |
| Magnet Material | Ferrite |
| Magnet Weight (g) | 283.5 |
| Cone Body Material | Paper |
| Cone Surround Material | Treated cloth |
| Dust Cap Material | Paper |
| Spider Material | Cotton |
| Net Weight (kg) | 0.86 |
| Technical Notes | ¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance |
