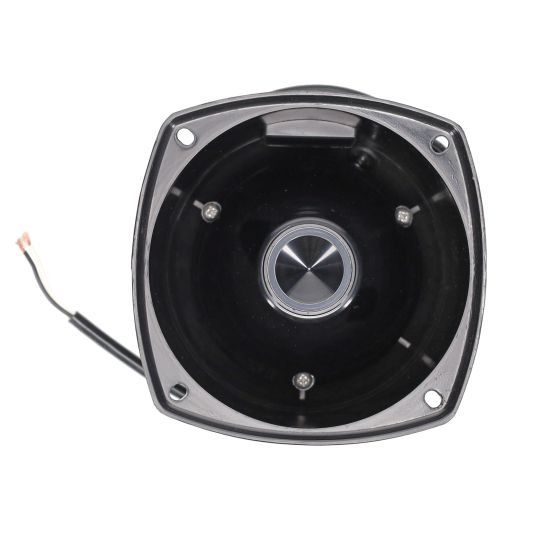

5.5 Inch (140 mm) Two-Way Horn Speaker
Brand Name
MISCO OEM
Part #
88104-B
Built to Order
$65.34
For trucks, trains, boats, and planes, the 88104-T delivers powerful and efficient audio for two-way communications. This specialty horn speaker uses a weather and corrosion resistant design and high durability materials to remain dependable and understandable longer than other speakers. Choose this driver if you need specialized, high-quality, and reliable sound.
- 5.5" (140 mm) diameter
- Voice range horn speaker, 8 ohms
- 107 dB SPL @ 1 Watt, 1 Meter
- 40 watts, 1 Octave at 2 kHz, averaged; 123 dB max SPL
- ABS plastic horn bell & assembly
- Phenolic diaphragm, ferrite magnet
- Black anodized aluminum heat sink
- Stainless steel screws
- 2 conductor, 18 AWG stranded, inner & outer PVC insulations
ALSO AVAILABLE IN TAN
*Bracket in drawing optional, not included in this assembly
Download Product Specifications (PDF) »
Brand Name | MISCO OEM |
---|---|
Speaker Type | Voice |
Shape of Speaker | Other |
Size, Nominal (inch & mm) | 5" (127 mm) |
Environment | Outdoor |
Application | Drive-Thru / Kiosk, Outdoor , Signal / Alarm Systems, Transit, Voice Communications |
RoHS Compliant | Yes |
Rated Impedance (Ω) | 8 |
Rated Power IEC268-5 (W) | 40 Watts |
Program Power (W) | 80 |
Sensitivity (dB SPL) ¹ | 107 |
Frequency Range (Hz) | 500 - 7,000 |
Resonant Frequency (Fs) (Hz) +/- 15% | 341 |
Nominal Impedance (Z) (Ω) | 8 |
Total Q Factor (Qts) | 1.50 |
Magnet Material | Ferrite |
Cone Body Material | Phenolic treated cloth |
Net Weight (kg) | 1.14 |
Technical Notes | ¹Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance |
Horn Bell | Impact & UV resistant ABS plastic |
Re-Entrant Assembly | Impact & UV resistant ABS plastic |
Heat Sink | Black anodized aluminum |
Screws | Stainless steel |
Cable | 2 conductor, 18 AWG stranded, inner & outer PVC insulations |
