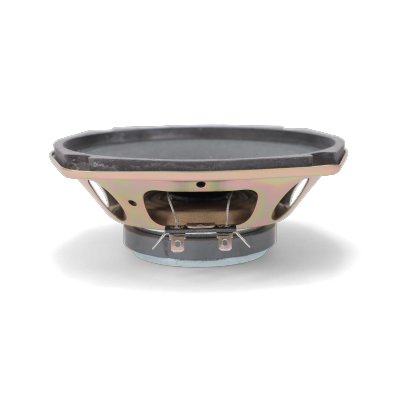

5.25 Inch (133 mm) Flame Retardant Wide Range Speaker
Brand Name
MISCO OEM
Part #
A52FC-I
Built to Order
$99.95
The A52FC offers excellent audio quality as a replacement speaker for commercial and general aviation applications, and is frequently used as a drop-in replacement for speakers in Cessna 150 aircrafts. This 5.25-inch wide-range driver features a flame-retardant-treated cone, a space-saving design for tight enclosures, excellent voice clarity, and top performance under tough altitude and temperature conditions.
- Wide-range speaker
- 5.25-inch (133 mm) steel basket diameter
- 12 watt, 4 ohm, 90 dB SPL
- 1-inch copper voice coil, Kapton former
- Ferrite magnet,
- Flame-retardant cone
Download Product Specifications (PDF) »
| Brand Name | MISCO OEM |
|---|---|
| Speaker Type | Wide Range |
| Shape of Speaker | Other |
| Size, Nominal (inch & mm) | 5" (127 mm) |
| Environment | Indoor |
| Application | Aerospace |
| RoHS Compliant | No |
| Rated Impedance (Ω) | 4 |
| Rated Power IEC268-5 (W) | 12 Watts |
| Program Power (W) | 24 |
| Sensitivity (dB SPL) ¹ | 90 |
| Frequency Range (Hz) | 80 - 10,000 |
| Resonant Frequency (Fs) (Hz) +/- 15% | 110 |
| Nominal Impedance (Z) (Ω) | 4 |
| Basket Type | Stamped steel |
| Terminal Size (mm) | 5.2 x 0.5 |
| Voice Coil Diameter (mm) | 25.4 |
| Voice Coil Wire Material | Copper |
| Voice Coil Former Material | Kapton |
| Magnet Material | Ferrite |
| Magnet Weight (g) | 136.08 |
| Cone Body Material | Flame retardant paper |
| Dust Cap Material | Flame retardant paper |
| Net Weight (kg) | 0.52 |
| Technical Notes | ¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance |
