5.25" (133 mm) Enclosed Passive Subwoofer

Brand Name
Turnkey Systems
Part #
In stock

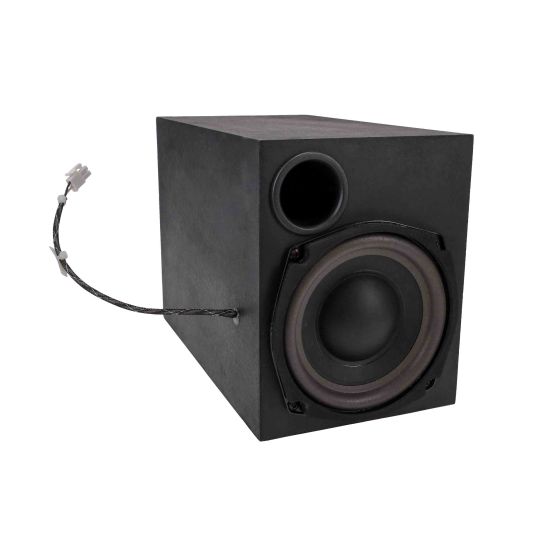

The 90305 uses a powerful, 5.25โ€ passive subwoofer in a ported, MDF enclosure that brings certainty and consistency to your bass frequencies. Connect this via a lead set terminated with an MFJ connector to give your sound systemโ€™s low-end the depth your listeners crave.

  • 5.25โ€ subwoofer
  • MDF ported enclosure (9.5 x 6 x 7โ€)
  • Lead set with MFJ connector



Download Product Specifications (PDF) »

More Information
Brand Name Turnkey Systems
Speaker System Type Subwoofer
Enclosed Woofer Style Ported
Sub-Woofer Type Un-powered [passive]
RoHS Compliant Yes
Digital Signal Processing No
Audio Signal Input Analog
Audio System Description 5.25" Subwoofer in an MDF wooden enclosure
Audio System - Number of Channels 2.1 (Stereo Sub)
System Frequency Response 61 - 20kHz
Sub-Woofer Description 5.25" (133 mm) Subwoofer
Sub-Woofer Impedance 8 Ohms
Enclosure Style Ported
Sub-Woofer Frequency Range 61 - 20,000 Hz
Size, Enclosure H,W,L (inches & mm) 9.5 x 6 x 7.4" (241 x 152 187 mm)
Sub-Woofer Key Features 50 Watt, 87 dB sensitivity, paper cone, Polyether foam surround
Digital Input S/PDIF No
