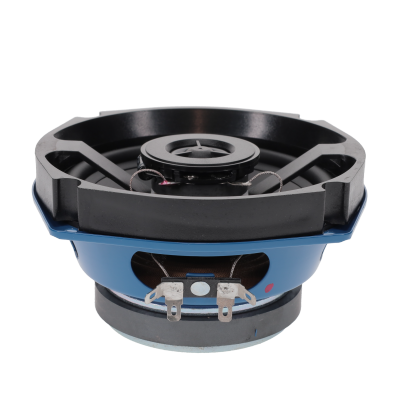

5.25 Inch (133 mm), 4 Ohm Coaxial Speaker
Brand Name
Oaktron by MISCO
Model #
XM-5033
Part #
93137
Built to Order
$52.98
A crisp, high-power solution for an outdoor sound system that needs a wide band of sound, as well as reliable longevity. The 93137 is a weather-resistant Oaktron driver able to stave off damage from moisture, rust, and UV rays thanks to polypropylene and Santoprene cone components, an ABS/glass-filled tweeter bridge, and a powder coat treatment underneath its eye-catching blue basket finish.
- Coaxial Speaker
- 5.25 in. (133 mm) steel basket diameter
- 25 watts, 4 ohm, 88 dB SPL
- 1 in. copper voice coil, Kapton former
- PEI dome tweeter coaxially mounted
- Polypropylene cone, ferrite magnet
Download Product Specifications (PDF) »
| Brand Name | Oaktron by MISCO |
|---|---|
| Model # | XM-5033 |
| Size, Nominal (inch & mm) | 5" (127 mm) |
| Shape of Speaker | Other |
| Speaker Type | Coaxial |
| Application | Outdoor |
| Environment | Outdoor |
| RoHS Compliant | No |
| Nominal Impedance (Z) (Ω) | 4 |
| Rated Power IEC268-5 (W) | 25 Watts |
| Rated Impedance (Ω) | 4 |
| Continuous Power (W) | 25 |
| Program Power (W) | 50 |
| Frequency Range (Hz) | 40 - 20,000 |
| Sensitivity (dB SPL) ¹ | 88 |
| Resonant Frequency (Fs) (Hz) +/- 15% | 50 |
| Basket Type | Stamped steel |
| Terminal Size (mm) | 5.2 x 0.5 |
| Voice Coil Diameter (mm) | 25.4 |
| Voice Coil Wire Material | Copper |
| Voice Coil Former Material | Nomex |
| Voice Coil Winding | Single Layer |
| Magnet Material | Ferrite |
| Magnet Weight (g) | 283.5 |
| Cone Body Material | Polypropylene |
| Dust Cap Material | Polypropylene |
| Spider Material | Cotton |
| Net Weight (kg) | 0.94 |
| Technical Notes | ¹Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance |
