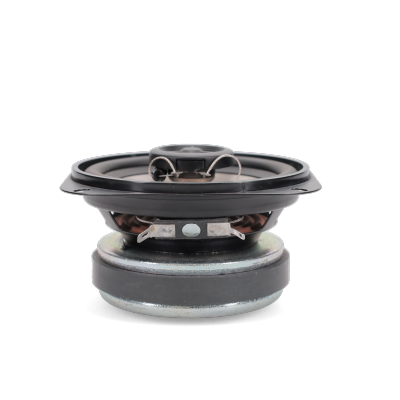

4 Inch (100 mm) Titanium Plated, Wide Range, Music Speaker
This wide-range coaxial four-inch speaker is ideal for a wide range of applications from car audio, gaming, or mass transit. The titanium-electroplated polypropylene cone provides additional years of extended life. The tweeter output is boosted to provide excellent off-axis frequency and power response. The high-compliance rubber surround enables low-frequency extension, providing great full-range audio from a single speaker!
- Titanium-electroplated polypropylene Cone
- Black powder coated, steel basket construction
- 30 watts program power
- Coaxial design with separate tweeter
- High Energy (HE) ferrite magnet
- Natural Rubber Surround
It features a four-hole mount design for ease of front or rear flush mounting. This speaker is not only ideal for voice communications, but because of its wide-range it would make it an excellent choice for numerous music applications.
*This speaker is a front or rear panel mountable, but the Tweeter protrudes beyond the front gasket and therefore grille placement cannot be flush to the gasket.
Download Product Specifications (PDF) »
| Brand Name | MISCO OEM |
|---|---|
| Speaker Type | Coaxial |
| Shape of Speaker | Square |
| Size, Nominal (inch & mm) | 4" (100 mm) |
| Environment | Outdoor / Indoor |
| Application | Arcade Gaming, Auto / Motorcycle, Casino Gaming, Indoor, Transit |
| RoHS Compliant | Yes |
| Rated Impedance (Ω) | 4 |
| Rated Power IEC268-5 (W) | 15 Watts |
| Program Power (W) | 30 |
| Sensitivity (dB SPL) ¹ | 87 |
| Frequency Range (Hz) | 60 - 20,000 |
| DC Resistance (Re) (Ω) | 3.5 |
| Resonant Frequency (Fs) (Hz) +/- 15% | 68 |
| Nominal Impedance (Z) (Ω) | 4 |
| Voice Coil Inductance (Le) (mH) | 0 |
| Mechanical Q Factor (Qms) | 5.6 |
| Electrical Q Factor (Qes) | 0.38 |
| Total Q Factor (Qts) | 0.35 |
| Basket Type | Stamped steel with black powder coat finish |
| Terminal Size (mm) | 2.8 x 0.5mm (0.110" x 0.020") |
| Voice Coil Diameter (mm) | 25.8 (1.02') |
| Voice Coil Wire Material | Copper |
| Voice Coil Former Material | Kapton |
| Magnet Material | Ferrite |
| Magnet Weight (g) | 294 (10 ounces) |
| Cone Body Material | Titanium Electroplated Polypropylene |
| Cone Surround Material | Natural Rubber |
| Spider Material | Conex |
| Dust Cap Material | Felt |
| Technical Notes | ¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance |
