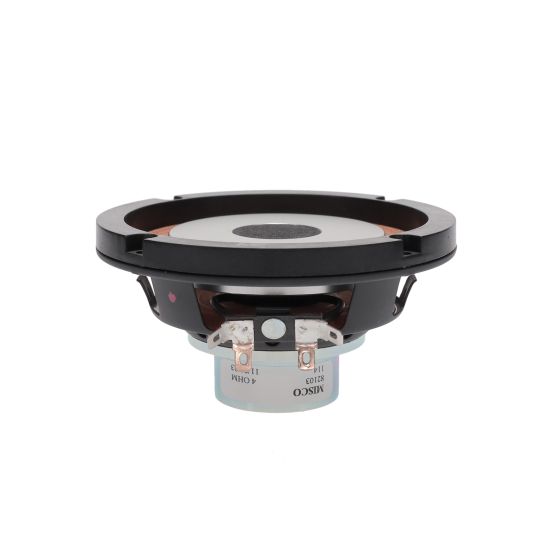

Creating Professional Audio Solutions Since 1949 4.6" (117 mm) 4 Ohm Tactile Shaker
Brand Name
MISCO OEM
Part #
82103
Built to Order
$0.00
- Buy 1 - 0$0.00
THIS IS A “BUILT TO ORDER” PRODUCT
This unique and compact tactile transducer is both forceful and musical. While many “shakers” deliver vibration on low notes, this transducer adds to the music not just the shaking. Its unique design uses a high force neodymium magnet structure to drive an aluminum diaphragm that is both a reactive mass and a loudspeaker cone. Because it is compact it will fit in tight spots and can be easily mounted to a theater chair, a drum throne, or floor panel to transmit bass lines to performers – dancers, singers, actors, instrumentalists.
- Tactile shaker
- 4.6" (117 mm) steel basket diameter
- 50 watts, 100 ohms
- Copper voice coil, aluminum former
- Neodymium magnet, aluminum diaphragm
Download Product Specifications (PDF) »
| Brand Name | MISCO OEM |
|---|---|
| Speaker Type | Exciter / Transducer |
| Shape of Speaker | Round |
| Size, Nominal (inch & mm) | 4.6" (117 mm) |
| Environment | Indoor |
| Application | High-End Audio and Home Theater, Musical Instruments, Pro Sound |
| RoHS Compliant | Yes |
| Rated Impedance (Ω) | 4 |
| Rated Power IEC268-5 (W) | 50 Watts |
| Program Power (W) | 100 |
| DC Resistance (Re) (Ω) | 3.8 |
| Resonant Frequency (Fs) (Hz) | 34 |
| Nominal Impedance (Z) (Ω) | 4 |
| Voice Coil Inductance (Le) (mH) | 0.95 |
| Mechanical Q Factor (Qms) | 5.78 |
| Electrical Q Factor (Qes) | 3.14 |
| Total Q Factor (Qts) | 1.5 |
| Basket Type | Stamped steel |
| Voice Coil Wire Material | Copper |
| Voice Coil Former Material | Aluminum |
| Magnet Material | Neodymium |
| Cone Body Material | Aluminum |
| Cone Surround Material | Treated cloth |
