Professional Audio Solutions Since 1949 4.5 Inch (116 mm) Flame-Retardant Voice Range Speaker
Brand Name
Misco OEM
Part #
P5VA-C8962
Built to Order
$102.50

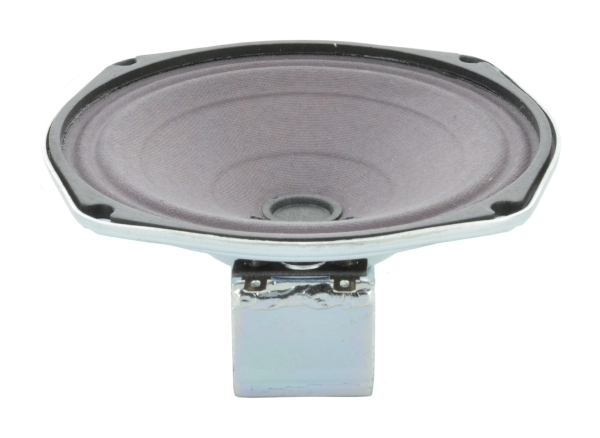

An 8 ohm, 4.5” voice range speaker with a small yet powerful lightweight alnico magnet for space-conscious avionic audio systems. This model includes a full flame-retardant treatment of its cone and surround.
- Voice range speaker
- 4.5” (116 mm) steel basket diameter
- 15 watts, 8 ohm, 90 dB SPL
- 0.6” copper voice coil, aluminum former
- 1.5 oz. alnico magnet
- Flame-retardant felted paper cone & surround
MISCO engineers use the world’s most sophisticated loudspeaker measurement systems including the Klippel Analyzer to maximize and validate the speaker’s design, as well as the Klippel QC module to ensure perfect unit to unit consistency and reliability.
Download Product Specifications (PDF) »
| Brand Name | Misco OEM |
|---|---|
| Speaker Type | Voice |
| Shape of Speaker | Round |
| Size, Nominal (inch & mm) | 4" (100 mm) |
| Environment | Indoor |
| Application | Aerospace, Voice Communications |
| RoHS Compliant | No |
| Rated Impedance (Ω) | 8 |
| Rated Power IEC268-5 (W) | 15 Watts |
| Program Power (W) | 30 |
| Sensitivity (dB SPL) ¹ | 90 |
| Frequency Range (Hz) | 150 - 10,000 |
| Resonant Frequency (Fs) (Hz) +/- 15% | 190 |
| Nominal Impedance (Z) (Ω) | 8 |
| Basket Type | Stamped steel, zinc-plated |
| Terminal Size (mm) | 4.7 x 0.5 |
| Voice Coil Diameter (mm) | 15.2 |
| Voice Coil Wire Material | Copper |
| Voice Coil Former Material | Aluminum |
| Magnet Material | Alnico |
| Magnet Weight (g) | 41.7 |
| Cone Body Material | Flame-retardant paper |
| Cone Surround Material | Flame-retardant paper |
| Net Weight (kg) | 0.26 |
| Technical Notes | ¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance
|
