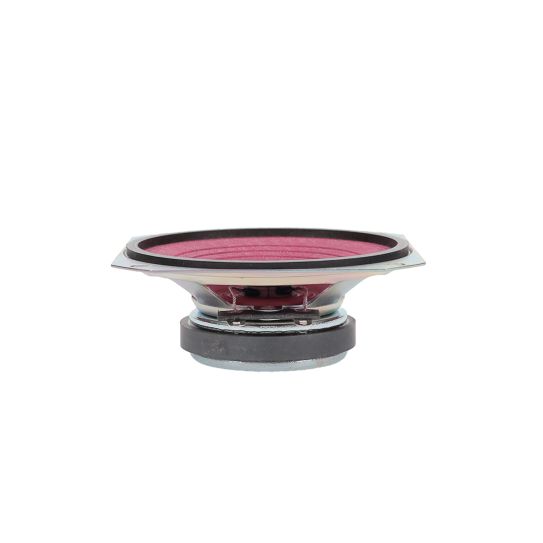

3.5 Inch (89 mm) 8 Ohm, Waterproof Voice Range Speaker
Brand Name
MISCO OEM
Part #
DC32WI
Built to Order
$34.99
The DC32WI is a 3.5” high sensitivity driver made for outdoor voice and intercom applications. A complete waterproof treatment also ensures it outlasts the elements in a variety of outdoor environments.
- Voice Range Driver
- 3.5” (89 mm) Diameter
- 4 Watts, 8 Ohms
- -67°F (-55°C) to +185°F (+85°C)
- Acrylic Treated Cloth Cone
- 92 dB SPL
Download Product Specifications (PDF) »
| Brand Name | MISCO OEM |
|---|---|
| Speaker Type | Voice |
| Shape of Speaker | Square |
| Size, Nominal (inch & mm) | 3" (77 mm) |
| Environment | Outdoor / Indoor |
| Application | Drive-Thru / Kiosk, Outdoor , Voice Communications |
| RoHS Compliant | No |
| Rated Impedance (Ω) | 8 |
| Rated Power IEC268-5 (W) | 4 Watts |
| Program Power (W) | 8 |
| Sensitivity (dB SPL) ¹ | 92 |
| Frequency Range (Hz) | 270 - 6,500 |
| DC Resistance (Re) (Ω) | 8 |
| Resonant Frequency (Fs) (Hz) +/- 15% | 541 |
| Nominal Impedance (Z) (Ω) | 8 |
| Total Q Factor (Qts) | 3.67 |
| Basket Type | Stamped Steel |
| Terminal Size (mm) | 4.7 x 0.5 |
| Voice Coil Diameter (mm) | 14.53 |
| Voice Coil Wire Material | High Temperature Copper |
| Voice Coil Former Material | Kapton |
| Magnet Material | Ferrite |
| Magnet Weight (g) | 66.6 |
| Cone Body Material | Acrylic Treated Cloth |
| Cone Surround Material | Treated Cloth |
| Spider Material | Cotton |
| Dust Cap Material | Felt |
| Net Weight (kg) | 0.23 |
| Technical Notes | ¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance |
