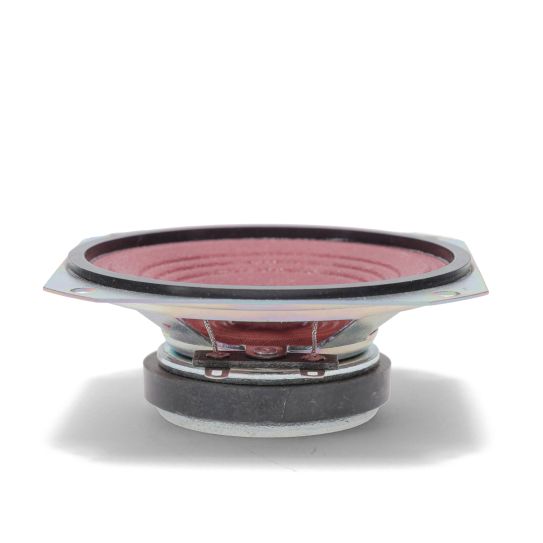

3.5 Inch (89 mm), Waterproof Voice Range Speaker, 8 Ohm
Brand Name
MISCO OEM
Part #
DC32WP
Built to Order
$29.99
The DC32WP is a 3.5” high sensitivity driver made for outdoor voice and intercom applications. A complete waterproof treatment also ensures it outlasts the elements in a variety of outdoor environments.
- Voice range speaker
- 3.5” (89 mm) steel basket diameter
- 4 watts, 8 ohms, 91 dB SPL
- 0.6" copper voice coil, Kapton former
- -67°F (-55°C) to +185°F (+85°C)
- Acrylic treated cloth cone, 2.35 oz. ferrite magnet
Download Product Specifications (PDF) »
| Brand Name | MISCO OEM |
|---|---|
| National Stock Number (NSN) | 5965013595473 |
| Speaker Type | Voice |
| Shape of Speaker | Square |
| Size, Nominal (inch & mm) | 3" (77 mm) |
| Environment | Outdoor |
| Application | Voice Communications |
| RoHS Compliant | Yes |
| Rated Impedance (Ω) | 8 |
| Rated Power IEC268-5 (W) | 4 Watts |
| Program Power (W) | 8 |
| Sensitivity (dB SPL) ¹ | 91 |
| Frequency Range (Hz) | 195 - 7,000 |
| DC Resistance (Re) (Ω) | 8 |
| Resonant Frequency (Fs) (Hz) +/- 15% | 341 |
| Nominal Impedance (Z) (Ω) | 8 |
| Total Q Factor (Qts) | 4.36 |
| Basket Type | Stamped Steel |
| Terminal Size (mm) | 4.7 x 0.5 |
| Voice Coil Diameter (mm) | 14.5288 |
| Voice Coil Wire Material | High Temperature Copper |
| Voice Coil Former Material | Kapton |
| Magnet Material | Ferrite |
| Magnet Weight (g) | 66.6 |
| Cone Body Material | Acrylic Treated Cloth |
| Cone Surround Material | Treated Cloth |
| Spider Material | Cotton |
| Dust Cap Material | Felt |
| Net Weight (kg) | 0.225 |
| Technical Notes | ¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance |
