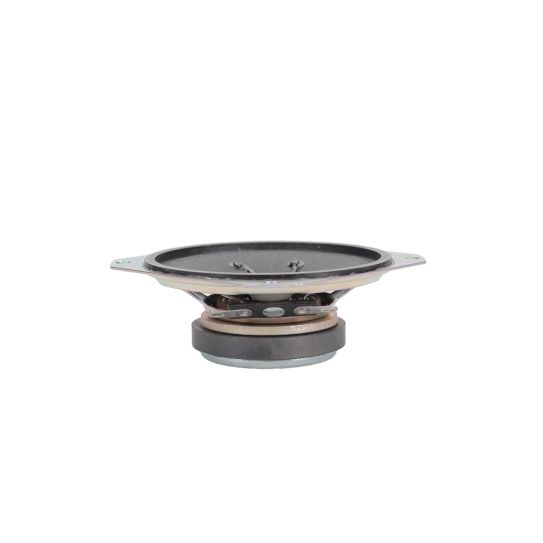

3.5 Inch (89 mm), Dual 16 Ohm Voice Range Speaker
Brand Name
MISCO OEM
Part #
DC32S-16-16
Built to Order
$109.99
The DC32S-16-16 is a 3.5” speaker custom tailored for transit-based paging and voice communication. This model’s 16-ohm dual voice coil models for supervised circuits to wire two separate channels into the same driver.
- Voice range speaker
- 3.5" (89 mm) steel basket diameter
- 4 watts, 16 ohms, 93 dB SPL
- 0.7" copper dual voice coil, aluminum former
- Felted paper cone, paper surround
- 2.35 oz. ferrite magnet
Download Product Specifications (PDF) »
| Brand Name | MISCO OEM |
|---|---|
| Speaker Type | Voice |
| Shape of Speaker | Square |
| Size, Nominal (inch & mm) | 3" (77 mm) |
| Environment | Indoor |
| Application | Indoor, Transit |
| Rated Impedance (Ω) | 16 |
| Rated Power IEC268-5 (W) | 4 Watts |
| Program Power (W) | 8 |
| Sensitivity (dB SPL) ¹ | 93 |
| Frequency Range (Hz) | 220 - 10,000 |
| DC Resistance (Re) (Ω) | 12 |
| Resonant Frequency (Fs) (Hz) +/- 15% | 211 |
| Nominal Impedance (Z) (Ω) | 16 |
| Mechanical Q Factor (Qms) | 5.7 |
| Electrical Q Factor (Qes) | 2.66 |
| Total Q Factor (Qts) | 1.50 |
| Basket Type | Stamped steel |
| Terminal Size (mm) | 4.8 x 0.5 |
| Voice Coil Diameter (mm) | 17.8 |
| Voice Coil Wire Material | Copper |
| Voice Coil Former Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight (g) | 68 |
| Cone Body Material | Felted paper |
| Cone Surround Material | Paper |
| Dust Cap Material | Felt |
| Net Weight (kg) | 0.23 |
| Technical Notes | ¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance |
