2 CH. High-Performance Amplified Audio System
Brand Name
MISCO
Part #
TK-102
Out of stock
$129.98
The TK-102 system is a great choice for kiosks and digital signage where highly intelligible sound is required, as well as gaming consoles in need of more audio excitement. The enclosed speakers are ready to drop into your cabinet and the amplifier can work with your 9V – 24V power supply. Don't risk less than ideal sound via a la carte product choice, MISCO has done the work for you by pairing the right amplifier with the right speakers. While low in cost, the 102 provides plenty of high-quality sound output thanks to the perfect match of the amplifier to speakers.
Speakers
- 2.5" (64 mm) enclosed, wide range
- 4-Ohm, 6 Watt, 88 dB sensitivity
- Supplied enclosures ensure consistent audio quality
- Cloth surround for extended lifespan
Amplifier
- Power output: 12.5W x 2
- PCB style, w/ volume control
- Wide 9-24VDC rail voltage input range
- Available MISCO power supplies 36174 or PS15-VDC (sold separately)

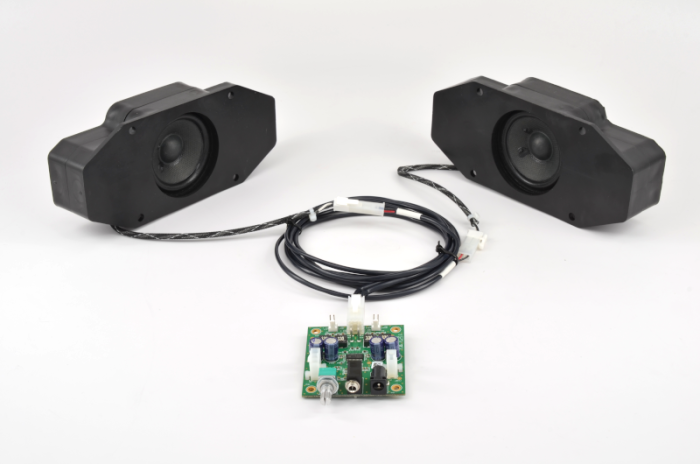

This kit includes:
- Satellite - 90202 (x2)
- Amplifier - 93101
- Wire Harness - 36173
Download Product Specifications (PDF) »
| Brand Name | MISCO |
|---|---|
| Speaker System Type | Full Range |
| Enclosed Woofer Style | None |
| Subwoofer Type | None |
| RoHS Compliant | Yes |
| Digital Signal Processing | No |
| Audio Signal Input | Analog |
| Audio System Description | Enclosed and amplified 2.75" wide range satellite speaker system built for kiosks, digital signage, and gaming consoles. |
| Audio System - Number of Channels | 2 (Left / Right Stereo) |
| System Frequency Response | 240 - 15kHz |
| Key System Features | 2.75" (70 mm) enclosed full range speakers, Two-channel class-D amplifier, 48" wire harness |
| Satellite Impedance | 4-Ohm, 10 Watt, 84dB sensitivity |
| Satellite Enclosure Size and Description | 7" X 3" X 1.95" Enclosure, Black |
| Satellite Frequency Range | 240 - 15kHz |
| Satellite - Key Features | 2.75" (70 mm) enclosed full range, 4 Ohm, 6 Watt, 88 dB sensitivity |
| Enclosure Style | Ported |
| Amplifier Style | Printed Circuit Board |
| Amplifier Description | Two-channel amplifier with LC filtered output |
| Amplifier Class Type | Class-D |
| PCB Size (HxWxL) (mm) | 15.3 x 57.1 x 63.7 |
| Amplifier Channel Count | 2 (Left / Right Stereo) |
| Audio Input | Analog Input |
| Digital Input S/PDIF | No |
| 8 Ω both HF channels driven (Watts RMS) | 13.5 |
| Total Low Frequency (Sub-woofer) Output Power per channel into 4 Ω. (Watts) | 9.5 |
| Recommended Voltage (VDC) | 15 |
| Recommended Current (A) | 2 |
| Recommended Power (W) | 30 |
| Connectors / Termination - Speaker Input | 3.5 mm audio jack, analog, 3 position mini fit JR |
| Connectors / Termination - Speaker Output | L/R: 4 Position Mini Fit JR |
| Wire Harness Description | L/R: 2 Position Mini Fit JR, To Amp: 4 Position Mini Fit JR |
| Wire Harness Length | L/R: 48" Cables |
