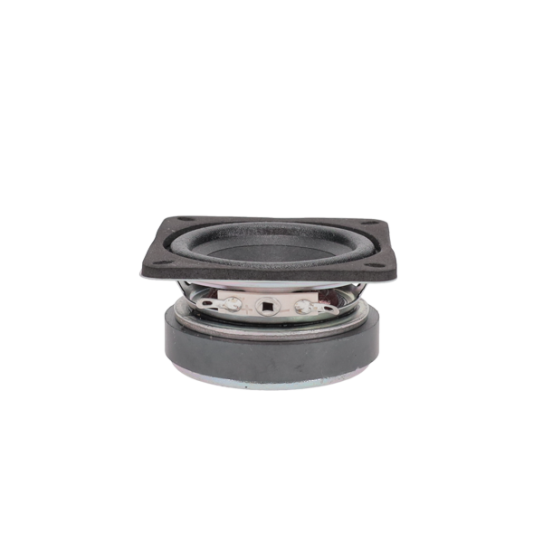

2.5 Inch Full Range Speaker
Brand Name
MISCO OEM
Part #
93144
In stock
$14.99
This 2.5” full range speaker excels in tight spaces due to its small, square stamped steel basket, making it the ideal choice for narrow column speakers, sound bars, and compact satellite enclosures. Designed specifically to deliver exceptional clarity in casino gaming cabinets, the 70289 offers a wide frequency range of 200Hz to 20kHz, and an exceptionally high sensitivity for its size at 88.5 dB.
Download Product Specifications (PDF) »
| Brand Name | MISCO OEM |
|---|---|
| Speaker Type | Wide Range |
| Shape of Speaker | Square |
| Size, Nominal (inch & mm) | 2.5" (66 mm) |
| Environment | Indoor |
| Application | Arcade Gaming, Casino Gaming, Commercial, Indoor, Signal / Alarm Systems, Voice Communications |
| RoHS Compliant | Yes |
| Rated Impedance (Ω) | 4 |
| Rated Power IEC268-5 (W) | 3 Watts |
| Program Power (W) | 6 |
| Sensitivity (dB SPL) ¹ | 88.5 |
| Frequency Range (Hz) | 200 - 20k |
| DC Resistance (Re) (Ω) | 3.33 |
| Resonant Frequency (Fs) (Hz) +/- 15% | 234 |
| Nominal Impedance (Z) (Ω) | 4 |
| Voice Coil Inductance (Le) (mH) | 0.065 |
| Mechanical Q Factor (Qms) | 6.24 |
| Electrical Q Factor (Qes) | 0.891 |
| Total Q Factor (Qts) | 0.78 |
| Basket Type | Stamped Steel |
| Voice Coil Wire Material | Copper |
| Magnet Material | Ferrite |
| Magnet Weight (g) | 120.769 |
| Cone Body Material | Paper & Cloth |
| Cone Surround Material | Cloth |
