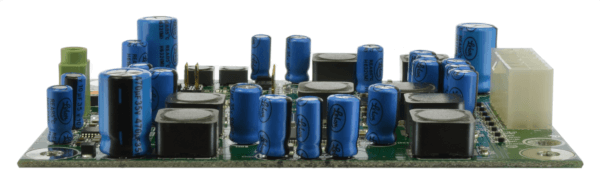

2.2.1 Channel, 50W, PCB Style Amplifier with DSP
Brand Name
MISCO Amplifiers
Model #
MA-2104
Part #
93107
In stock
$79.95
The MISCO 93107 is an ideal choice to power a subwoofer and two 2-way speakers, or a sub and two pair of high/midrange speakers. Potential applications include arcade gaming consoles and other uses where wide frequency and dynamic range are needed. Built-in digital signal processing provides a software adjustable crossover and EQ for easy sound optimization, and accepts a power supply input range of 9 to 24VDC, allowing for existing power rails or an external MISCO power supply sold separately.
Key Features
- 2.2.1 channel configuration
- Up to 70 Watts total power output*
- Cool-running Class D amplifier
- Integrated DSP for maximum sound control parametric (EQ, Crossover and dynamic range software control)
*Power output varies with supply voltage and speaker impedance. See specs table for details.
Download Product Specifications (PDF) »
| Brand Name | MISCO Amplifiers |
|---|---|
| Model # | MA-2104 |
| Application | Arcade Gaming, Casino Gaming |
| RoHS Compliant | Yes |
| Amplifier Style | Printed Circuit Board |
| Amplifier Channels | 2.2.1 |
| Watts Per Channel (HF/LF) (W) | 14 x 4 / 34 |
| Digital Signal Processing | Yes |
| PSU Voltage Range | 24 |
| Audio Input | Digital |
| Amplifier Class Type | Class D |
| 4 Ohm Power (HF/MF/LF) (W) | 14 / 14 / 34 |
| 8 Ohm Power (HF/MF/LF) (W) | 9 / 9 / 34 |
| Total Harmonic Distortion plus Noise,THD+N (% @Power, @Load, @Supply Voltage) | HF: 0.14% @5.86Watts@8Ohms@24VDC MF: 0.2% @23Watts@8Ohms@24VDC LF: 0.2% @23Watts@8Ohms@24VDC |
| Frequency Response (HF/MF/LF) (+/-1db @ 1W) (Hz) | 400 - 18,000 / 22 - 9,000 / 22 - 18,000 |
| Analog Input Sensitivity (VRMS) | 3 |
| Connectors / Termination - Line Input | 3.5mm Stereo |
| Connectors / Termination - Speaker Output | 14-Pin MFJ |
| General Overview | PC Software: Mode Select Jumpers: Game mode, Sign Mode, Control Mode |
| Equalizers - EQs | HF and MF: 3 Bands Peak/Dip, Frequency Adjustable from, 20Hz to 20KHz Q adjustable from 0.1 -10 LF: 1 Band Peak/Dip, Frequency Adjustable from, 20Hz to 20KHz Q adjustable from 0.1 -10 |
| Crossovers | 3-Way, Adjustable from 20Hz to 20KHz |
| Cooling | Convection/Air |
| LED Indicator | Power On (Green light) |
| Recommended Voltage (VDC) | 24 |
| Recommended Current (A) | 2.5 |
| Recommended Power (W) | 60 |
