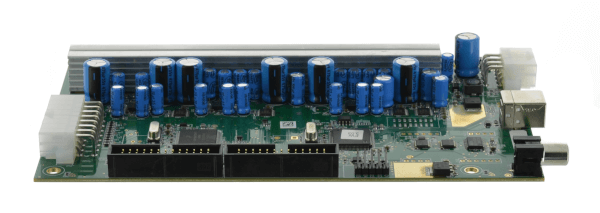

Professional Audio Solutions Since 1949 Bi-Amped, 2.2.1 Channel, 175W, PCB Style Amplifier with DSP
Brand Name
MISCO Amplifiers
Model #
MA-4101
Part #
93108
Out of stock
$145.00
The 93108 is a high flexibility amplifier configured for bi-amped sound systems. This design allows midrange channels and tweeter channels to each have their own amplifier settings for complete customization. Add an expansion port for two more amplified channels. This amplifier supports Butterworth, Linkwitz-Riley, and Bessel filter types, and accepts a power supply input range of 9 to 24VDC, allowing for existing power rails or an external MISCO power supply sold separately. Each stereo pair has level offset and phase control to maintain high quality listening in your sound projects.
Key Features:
- 2.2.1 channel, class-D
- 175 watt, PCB style
- Customizable bi-amp DSP configuration
- High flexibility for different outputs, inputs
- Butterworth, Linkwitz-Riley, and Bessel filter types
*Power output varies with supply voltage and speaker impedance. See specs table for details.
Download Product Specifications (PDF) »
| Brand Name | MISCO Amplifiers |
|---|---|
| Model # | MA-4101 |
| Application | Arcade Gaming, Casino Gaming |
| RoHS Compliant | Yes |
| Amplifier Style | Printed Circuit Board |
| Amplifier Channels | 2.2.1 |
| Watts Per Channel (W) | 11 - 26 |
| Watts Per Channel (HF/LF) (W) | 10 x 2 / 50 x 2 / 50 |
| Digital Signal Processing | Yes |
| Audio Input | USB, S/PDIF, analog |
| Amplifier Class Type | Class D |
| 4 Ohm Power (HF/MF/LF) (W) | 14 / 14 / n/a |
| 8 Ohm Power (HF/MF/LF) (W) | 9 / 9 / 34 |
| Total Harmonic Distortion plus Noise,THD+N (% @Power, @Load, @Supply Voltage) | HF: 0.14% @5.86Watts@8Ohms@24VDC MF: 0.2% @23Watts@8Ohms@24VDC LF: 0.2% @23Watts@8Ohms@24VDC |
| Frequency Response (HF/MF/LF) (+/-1db @ 1W) (Hz) | 400 - 18,000 / 22 - 9,000 / 22 - 18,000 |
| Analog Input Sensitivity (VRMS) | 3 |
| Connectors / Termination - Line Input | 8-Pin MFJ 1x RCA (digital) USB |
| Connectors / Termination - Speaker Output | 16-pin MFJ |
| General Overview | 4CH amplifier with USB, S/PDIF and analog inputs. Amp can be used as bi-amp stereo or a 2.1 amplifier. Flexible DSP allows custom system tuning. |
| Equalizers - EQs | 10-band EQ on each output |
| Crossovers | Yes, low pass, high pass, all pass. |
| Optional Plugin Effects | Time alignment delay |
| Cooling | Convection/Air |
| Recommended Voltage (VDC) | 24 |
| Recommended Current (A) | 3.75 |
| Recommended Power (W) | 90 |
