2.1 CH. High-Performance Amplified Audio System w/ Subwoofer
Brand Name
MISCO
Part #
TK-401
Built to Order
$245.00
The TK-401 system is a great choice when you want the performance certainty and consistency of self-enclosed speakers. The PC board style amplifier is ready to be integrated alongside your electronics package. A supplied wiring harness with slip-on connectors makes assembly easy, foolproof and fast. Don't risk less than ideal sound via a la carte product choice, MISCO has done the work for you by pairing the right amplifier with the right speakers.
Satellite Speakers
- 3" (76mm) Polypropylene cone wide range driver
- Neodymium magnet
- Rubber surround for long life
- Rigid glass-filled Injection molded enclosure
Sub-Woofer
- 5.25" paper cone woofer with Polyether foam surround
- 8-Ohm, 50-Watt, 87dB sensitivity
- Ported low-resonance MDF (Medium Density Fiberboard) enclosure
Amplifier
- 2.1 Channel amp, Class D, PCB style with DSP
- Cool-running, reliable Class D operation
- Up to 28W total power output
- Recommended power supply 24V DC
- Optional MISCO power supply 36162
Wiring harness with quick-connect terminations include

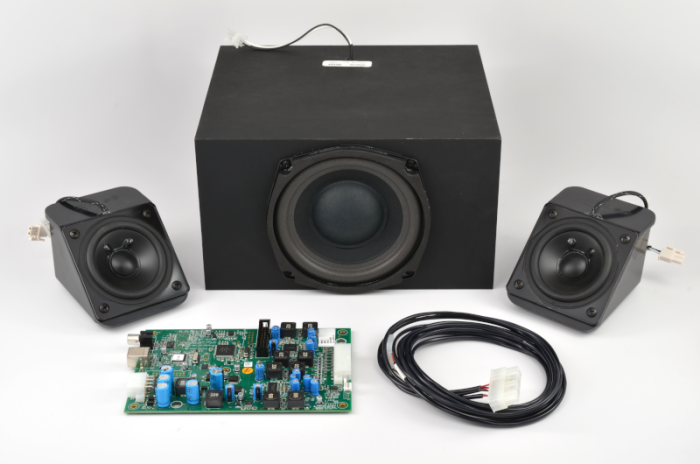

This kit includes:
Download Product Specifications (PDF) »
| Brand Name | MISCO |
|---|---|
| Speaker System Type | 2 Way |
| Enclosed Woofer Style | Ported |
| Subwoofer Type | Powered [active] |
| RoHS Compliant | Yes |
| Digital Signal Processing | Yes |
| Audio Signal Input | Analog |
| Audio System Description | 2.1 channel, full range speaker system with enclosed satellite speakers and a sub-woofer enclosed with a class D amplifier with digital signal processing |
| Audio System - Number of Channels | 2.1 (Stereo Sub) |
| System Frequency Response | 57 - 15kHz |
| Key System Features | Two 3", 8-ohm enclosed satellite speakers, a 5.25" 8-ohm sub-woofer, and a 2.1 channel amplifier with digital signal processing |
| Satellite Impedance | 8 ohms |
| Satellite Enclosure Size and Description | Black Injection Molded Enclosure, Lead Set w/ Molex Connector |
| Satellite Frequency Range | 200 - 20kHz |
| Satellite - Key Features | 30 watt, 81 dB sensitivity, neodymium magnet, polypropylene cone |
| Sub-Woofer Description | 5.25" (133 mm) Sub-Woofer |
| Sub-Woofer Impedance | 8 ohms |
| Enclosure Style | Ported |
| Sub-Woofer Frequency Range | 61 - 20kHz |
| Size, Enclosure H,W,L (inches & mm) | 9.5" x 6" x 7.4" (241 mm x 152 mm x 187 mm) |
| Sub-Woofer Key Features | 50 Watt, 87 dB sensitivity, paper cone, Polyether foam surround |
| Amplifier Style | Printed Circuit Board |
| Amplifier Description | 2.1 Channel Amplifier with Digital Signal Processing |
| Amplifier Class Type | Class-D |
| PCB Size (HxWxL) (mm) | 0.72" x 4.25" x 6.38" (18 mm x 108 mm x 162 mm) |
| Amplifier Channel Count | 2.1 Stereo with Subwoofer |
| Audio Input | Analog Input |
| Digital Input S/PDIF | Yes |
| 8 Ω both HF channels driven (Watts RMS) | 20 |
| Total Low Frequency (Sub-woofer) Output Power per channel into 4 Ω. (Watts) | 8 |
| Recommended Voltage (VDC) | 24 |
| Recommended Power (W) | 90 |
| Connectors / Termination - Speaker Input | Analog in, on same connector as DC power supply |
| Connectors / Termination - Speaker Output | 16 Position Mini Fit JR |
| Wire Harness Description | L/R and Sub-Woofer: 2 Position Mini Fit JR, To Amp" 16 Position Mini Fit JR |
| Wire Harness Length | 48" Cable, 72" Cable |
