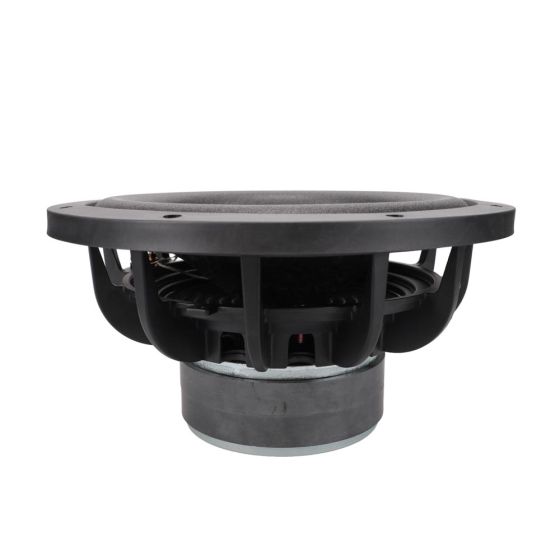

10 Inch (275 mm) Cast Frame Subwoofer
Model #
BWF-1002
Part #
82136
In stock
$169.99
The 82136, 10” premium subwoofer creates great low frequency output for professional and high-end audio applications. This product uses a dual ferrite magnet for long throw, sports a low resonance frequency for better bass performance, and operates at a 150 watt rated power handling. These characteristics, along with a hemp-fiber cone with a durable but light weight foam surround plus easy connecting gold plated spring terminals, enhance professional systems looking for a sub that is efficient, reliable, and consistent.
- Low 25 Hz resonant frequency
- 10", 12 spoke cast aluminum basket
- 150 watts, 88 dB SPL
- 2" four-layer voice coil, 5 ohm impedance
- Dual ferrite magnet allowing for long throw
- Hemp-fiber cone, foam surround
- 12.6 mm linear excursion (BL)
Bold North Audio products are the most accurate, engineered audio transducers available. Each design requires Klippel vibrational test analyses to verify the key parts of optimal audio performance. While we rely heavily on objective science to lead us, we understand that most of all speakers need to tell the musical truth. Our engineers, musicians, and recording studio veterans are the final judges of when a design is worthy of the Bold North Audio brand.
All Bold North Audio products are assembled in Minnesota, with parts sourced from around the world to produce the highest combination of performance, consistency, and customer value.
| Model # | BWF-1002 |
|---|---|
| Speaker Type | Subwoofer |
| Size, Nominal (inch & mm) | 10" (250 mm) |
| Shape of Speaker | Round |
| Application | High-End Audio and Home Theater, Home Audio |
| RoHS Compliant | Yes |
| Rated Impedance (Ω) | 5 |
| DC Resistance (Re) (Ω) | 4.1 |
| Rated Power IEC268-5 (W) | 150 Watts |
| Continuous Power (W) | 150 |
| Program Power (W) | 300 |
| Frequency Range (Hz) | 20 - 200 |
| Sensitivity (dB SPL) ¹ | 88 |
| Resonant Frequency (Fs) (Hz) +/- 15% | 25 |
| Nominal Impedance (Z) (Ω) | 5 |
| Voice Coil Inductance (Le) (mH) | 2.52 |
| Mechanical Q Factor (Qms) | 5.6 |
| Electrical Q Factor (Qes) | 0.29 |
| Total Q Factor (Qts) | 0.27 |
| Moving Mass (Mms) (gm) | 126 |
| Suspension Compliance (Cms) (mm/N) | 0.32 |
| Mechanical Resistance (Rms) (kg/s) | 3.6 |
| Surface Area of Diaphragm (Sd) (cm²) | 346 |
| Compliance Equivalent Volume (Vas) (L) | 46 |
| Motor Force Factor (BL) (T•M) | 16.9 |
| Efficiency (η₀) (%) | 0.20 |
| Efficiency Bandwidth Product (EBP) (Fs/Qes) | 86.2 |
| Basket Type | Cast aluminum |
| Terminal Size (mm) | Knurled push style spring connectors |
| Voice Coil Diameter (mm) | 51 |
| Voice Coil Wire Material | Round copper wire |
| Voice Coil Former Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight (g) | 1,077 |
| Cone Body Material | Hemp |
| Cone Surround Material | Foam |
| Spider Material | Polycotton |
| Dust Cap Material | Paper composite |
| Displacement Limit Due to Force Factor Variation (mm) | 12.6 |
| Displacement Limit Due to Compliance Variation (mm) | 5.3 |
