Professional Audio Solutions Since 1949 1 Inch (24 mm) 6 Ohm, Mylar Dome Tweeter
Brand Name
MISCO OEM
Part #
78007
In stock
$14.90

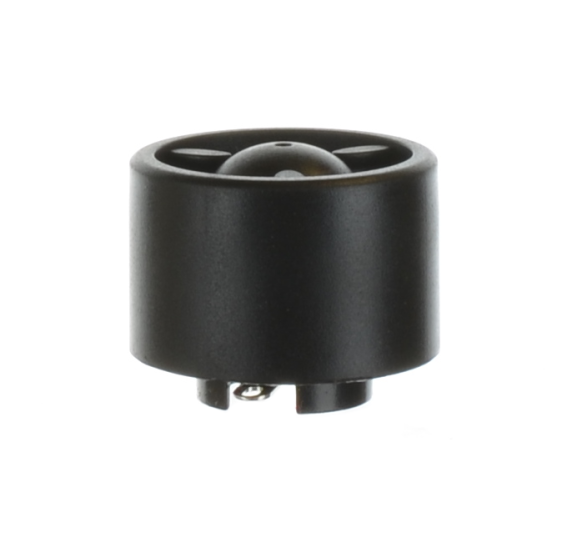

The 78007 is a small, versatile tweeter that features a mylar diaphragm, a molded resin frame and a high-energy neodymium magnet. This model fits inside of 1” voice coils for co-incidental phase aligned solutions, or pairs with 2-4” woofers in a compact two-way system or as a coaxial addition to an 8”-10” woofer.
- Dome tweeter
- 1” (24 mm) molded resin housing, fits inside a 1” voice coil
- 10 watts, 6 ohm, 85 dB SPL
- Neodymium magnet, mylar cone
- RoHS compliant
Download Product Specifications (PDF) »
| Brand Name | MISCO OEM |
|---|---|
| Speaker Type | Tweeter |
| Shape of Speaker | Round |
| Size, Nominal (inch & mm) | 1" (25 mm) |
| Environment | Indoor |
| Application | Auto / Motorcycle, Home Audio, Indoor, Voice Communications |
| RoHS Compliant | Yes |
| Rated Impedance (Ω) | 8 |
| Rated Power IEC268-5 (W) | 10 Watts |
| Program Power (W) | 20 |
| Sensitivity (dB SPL) ¹ | 85 |
| Frequency Range (Hz) | 3,800 - 20,000 |
| DC Resistance (Re) (Ω) | 6.2 |
| Resonant Frequency (Fs) (Hz) +/- 15% | 3800 |
| Nominal Impedance (Z) (Ω) | 8 |
| Mechanical Q Factor (Qms) | 2.91 |
| Electrical Q Factor (Qes) | 20.6 |
| Total Q Factor (Qts) | 2.00 |
| Basket Type | Plastic |
| Terminal Size (mm) | 3.6 x 0.5 |
| Magnet Material | Neodymium |
| Cone Body Material | Mylar |
| Cone Surround Material | Mylar |
| Net Weight (kg) | 0.01 |
| Technical Notes | ¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance |
