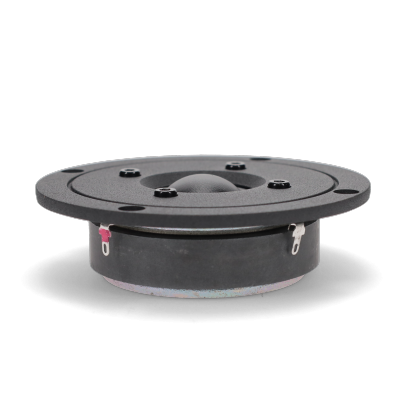

1 Inch (25 mm) Silk Dome Tweeter with 4 Inch Decorative Cast Aluminum Face Plate
This silk, soft dome tweeter is perfect for anyone looking for smooth high end frequencies in a rugged frame. The 93023 uses a custom-built, thin silk membrane to construct a flat frequency response and provide a clear, consistent performance. It's wide bandwidth and high sensitivity make this tweeter ideal for multi-way systems.
- Tweeter
- 1 in. (25 mm) silk dome, 4" (100 mm) face plate
- 10 watts, 8 ohms, 90 dB SPL
- 1 in. aluminum voice coil, polyimide former
- Neodymium magnet, cast aluminum basket
- Silk dome cone, silk surround
Note: Protect the tweeters that are installed in your audio system. Lower frequencies are not desirable signals to send to a tweeter. They can damage or destroy the tweeter diaphragm. Protection is important. Use a simple passive crossover (First Order), by using a (proper value) capacitor to stop low frequencies from making it to the tweeter. Refine your audio system by adding more complex crossovers with inductors, capacitors, and/or resistors. You may also want to add an active crossover system.
MISCO engineers test and analyze the performance of these speakers using the world's most sophisticated loudspeaker measurement systems including the Klippel Analyzer and the Klippel QC, which confirm the final design.
Download Product Specifications (PDF) »
| Brand Name | Oaktron by MISCO |
|---|---|
| Model # | 25-TD08-03 |
| Size, Nominal (inch & mm) | 1" (25 mm) |
| Shape of Speaker | Round |
| Speaker Type | Tweeter |
| Application | High-End Audio and Home Theater, Home Audio, Indoor |
| Environment | Indoor |
| RoHS Compliant | Yes |
| Nominal Impedance (Z) (Ω) | 8 |
| Rated Power IEC268-5 (W) | 20 Watts |
| Rated Impedance (Ω) | 8 |
| Continuous Power (W) | 10 |
| Program Power (W) | 20 |
| Frequency Range (Hz) | 1,200 - 20,000 |
| Sensitivity (dB SPL) ¹ | 90 |
| Resonant Frequency (Fs) (Hz) +/- 15% | 1105 |
| DC Resistance (Re) (Ω) | 7.2 |
| Voice Coil Inductance (Le) (mH) | 0.06 |
| Mechanical Q Factor (Qms) | 2.41 |
| Electrical Q Factor (Qes) | 1.26 |
| Total Q Factor (Qts) | 0.83 |
| Mechanical Resistance (Rms) (kg/s) | 0.67 |
| Compliance Equivalent Volume (Vas) (L) | 0.01 |
| Suspension Compliance (Cms) (mm/N) | 0.09 |
| Surface Area of Diaphragm (Sd) (cm²) | 6.6 |
| Moving Mass (Mms) (gm) | 0.2 |
| Motor Force Factor (BL) (T•M) | 3.0 |
| Efficiency (η₀) (%) | 0.57 |
| Efficiency Bandwidth Product (EBP) (Fs/Qes) | 875.4 |
| Basket Type | Cast aluminum |
| Terminal Size (mm) | 2.8 x 0.5 mm |
| Voice Coil Diameter (mm) | 25 |
| Voice Coil Wire Material | Copper clad aluminum |
| Voice Coil Former Material | Polyimide film |
| Voice Coil Winding | 2 layers, single voice coil |
| Magnet Material | Neodymium |
| Magnet Weight (g) | 252 |
| Cone Body Material | Silk |
| Cone Surround Material | Silk |
| Spider Material | Silk |
| Net Weight (kg) | 0.56 |
| Technical Notes | ¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance |
