Professional Audio Solutions Since 1949 1.5 Inch (40 mm) 8 Ohm, Titanium Dome Tweeter
Brand Name
MISCO OEM
Part #
DT-15B
In stock
$19.99

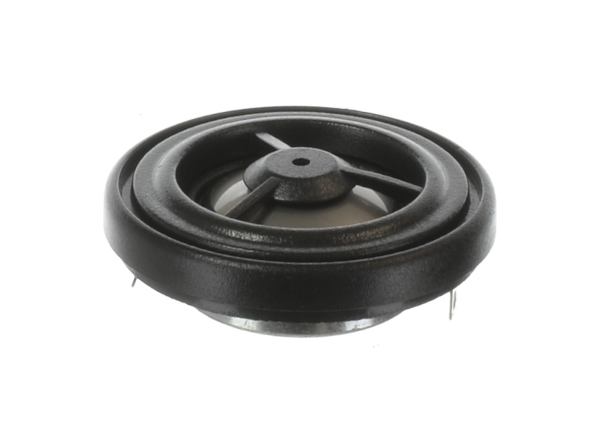

The DT-15B features a 1.5” titanium dome tweeter with an attached plastic diffuser to increase high frequency dispersion. An M4 tapped hole in the back of the neodymium magnet housing allows coaxial mounting to other speakers or from the rear in an enclosure. This model matches well with 5.25-8” woofers as either a coaxial addition or in a two-way system.
- Titanium dome tweeter
- 5” (40 mm) molded resin basket diameter
- 15 watts, 8 ohm, 87 dB SPL
- High energy neodymium magnet
- M4 tapped hole for easy mounting
For this tweeter with a silk dome, see DT-15D.
For an added 5 ohm resistor and 3.3 uF capacitor, see DT-15A-5R-3.3UF.
Download Product Specifications (PDF) »
| Brand Name | MISCO OEM |
|---|---|
| Speaker Type | Tweeter |
| Shape of Speaker | Round |
| Size, Nominal (inch & mm) | 1" (25 mm) |
| Environment | Indoor |
| Application | Auto / Motorcycle, Home Audio, Indoor, Voice Communications |
| RoHS Compliant | Yes |
| Rated Impedance (Ω) | 8 |
| Rated Power IEC268-5 (W) | 15 Watts |
| Program Power (W) | 30 |
| Sensitivity (dB SPL) ¹ | 87 |
| Frequency Range (Hz) | 2,000 - 20,000 |
| DC Resistance (Re) (Ω) | 7.2 |
| Resonant Frequency (Fs) (Hz) +/- 15% | 1575 |
| Nominal Impedance (Z) (Ω) | 8 |
| Mechanical Q Factor (Qms) | 1.1 |
| Electrical Q Factor (Qes) | 2.71 |
| Total Q Factor (Qts) | 0.78 |
| Basket Type | Molded resin |
| Terminal Size (mm) | 0.1 x 0.02 |
| Voice Coil Diameter (mm) | 20.3 |
| Voice Coil Wire Material | Copper |
| Voice Coil Former Material | Aluminum |
| Magnet Material | Neodymium |
| Magnet Weight (g) | 6 |
| Cone Body Material | Titanium dome |
| Cone Surround Material | Pre-treated black cloth |
| Net Weight (kg) | 0.03 |
| Technical Notes | ¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance |
